Question: Force F acts on the frame such that its component acting along member AB is 3 2 5 N , directed from B towards A

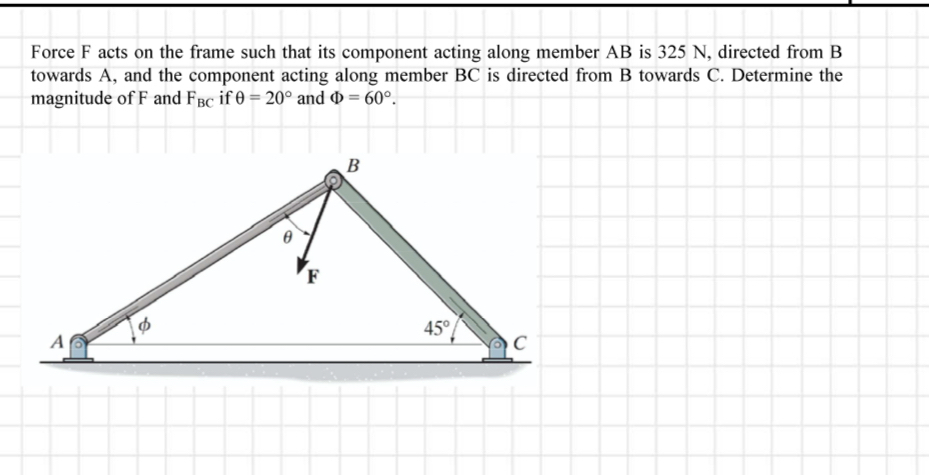

Force F acts on the frame such that its component acting along member AB is 325 N , directed from B towards A , and the component acting along member BC is directed from B towards C . Determine the magnitude of F and FBC if =20 and =60.
Force F acts on the frame such that its component

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A, and the component acting along member BC is 500 lb, directed from B towards C. Determine...

Q:

* 2 - 1 6 . Force F acts on the frame such that its component acting along member A B is 6 5 0 lb , directed from B towards A . Determine the required angle

Q:

Force F acts on the frame such that its compenent acting along member Ab is 6 5 0 lb , directed from B towards A , and the compenent acting along member BC is 5 0 0 lb , directed from B to C ....

Q:

Force F acts on the frame such that its component acting along member AB is 325 N, directed from B towards A, and the component acting along member BC is directed from B towards C. Determine the...

Q:

Force F acts on the frame such that its component acting along member A B is 6 6 0 lb , directed from B towards A , and the component acting along member B C is 5 4 0 lb , directed from B towards C ....

Q:

Force F acts on the frame such that its component acting along member A B is 6 0 0 lb , directed from B towards A , and the component acting along member B C is 5 2 0 lb , directed from B towards C ....

Q:

Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A. Determine the required angle (0 45) and the component acting along member BC. Set F =...

Q:

Force F acts on the frame such that its component acting along member AB is 700 Ib, directed from B towards A. Determine the required angle phi and the component acting along member BC. Set F = 900...

Q:

Determine the design angle ( 0 9 0 ) for strut A B so that the 4 0 0 - l b horizontal force has a component of 5 0 0 lb directed from A towards C . What is the component of force acting along member...

Q:

Part A Determine the design angle ( 0 9 0 ) for strut A B so that the 4 0 0 lb horizontal force has a component of 5 2 5 lb directed from A towards C . Take 4 = 4 4 . ( Figure 1 ) Express your answer...
