Question: Force Method Use the Force Method to determine the reactions at the supports. Assume A is fixed, B is fixed connected joint, and C is

Force Method

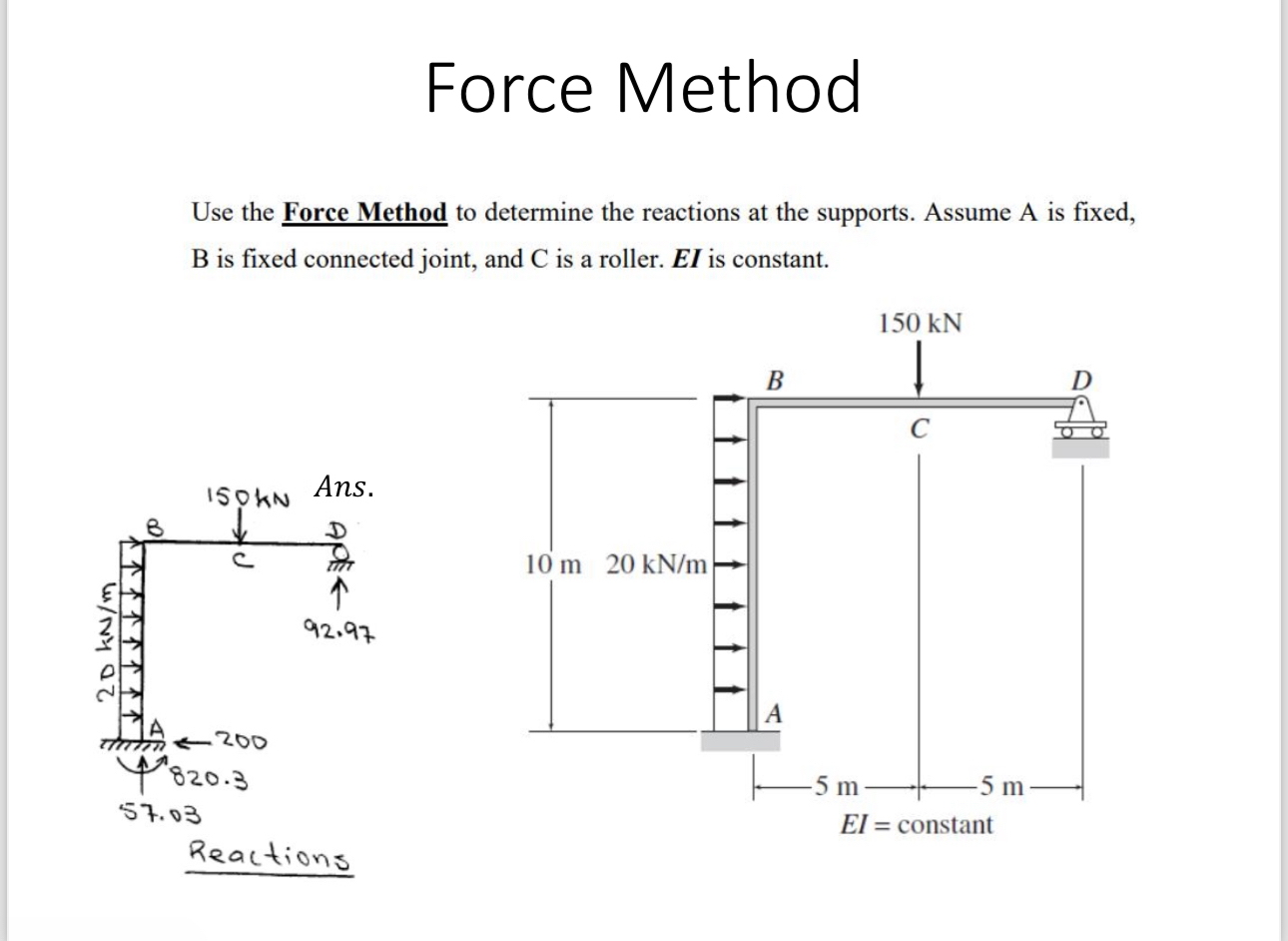

Use the Force Method to determine the reactions at the supports. Assume A is fixed, B is fixed connected joint, and C is a roller. EI is constant.
Force Method Use the Force Method to determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Force Method Use the force method to determine the reactions at the supports. Then draw the shear and moment diagrams.

Q:

04 (a): Determine the reactions at the supports. Assume the support at A is fixed and B is a roller. El is constant. Using: Force Method. SkN/m Sm LIT

Q:

QUESTION 3 [ 5 0 MARKS ] Use an excel program to determine the reactions at the supports A and D of figure Q 3 below, using the stiffness matrix method. Joints B and C are fixed connected, and so is...

Q:

9 - 2 1 . Determine the reactions at the supports. Assume A is fixed and the joint at B is rigid. E I is constant. Problem 9 - 2 1 Problem 6 : The frame below has constant EI for beams and columns...

Q:

View Available Hint ( s ) Learning Goal: The reaction forces of statically determinate structures can be determined by applying the three equations of equilibrium. A structure or any of its members...

Q:

SAN 3 7 0 1 MAJOR TEST 1 2 0 2 3 - Sem 1 QUESTION 1 [ 2 5 MARKS ] Determine the reactions at the supports in Figure Q 1 below using the flexibility method. Assume A and C are pins and the joint at B...

Q:

Determine the reactions at supports. Using; ( A is fixed and B is roller support. All elements are axially rigid. ) a ) Force method ( Use virtual work principle ) ( Hint: While taking integral...

Q:

Determine the reactions at the supports using the force method of analysis. Assume A and C are pins and the joint at B is fixed connected. EI is constant. Take the horizontal reaction at the pin C as...

Q:

For the beam loaded as shown below use the force method to solve for the reactions. Assume the redundant force is By . Assume that C is fixed and B is a roller. El is constant. Use the method of...

Q:

Statically Indeterminant Deflection in Beams Problem 1 : Setup: The beam is used to support the 2 0 - kip load. Assume A is fixed and B is a roller. Find: Determine the reactions at the supports. ? 1...
