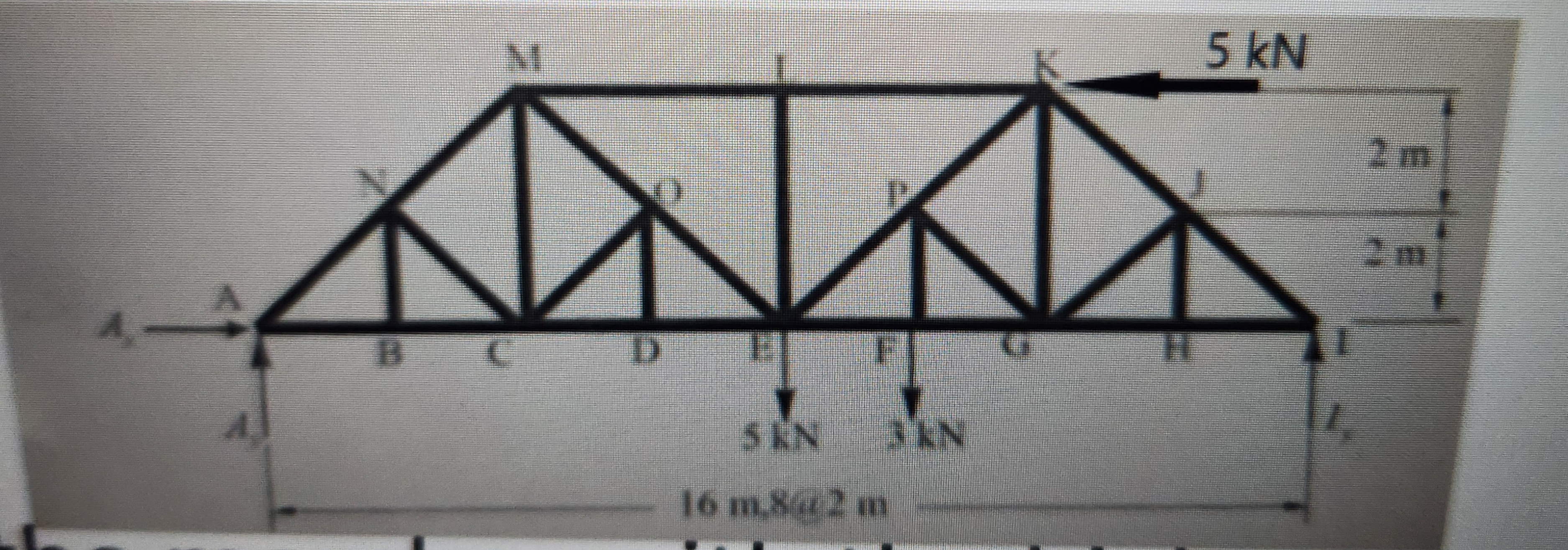

Question: From HW - Statics, problem S - 2 , you have the reactions for the truss, now calculate the loads in every member. Green sheets

From HW-Statics, problem S-2, you have the reactions for the truss, now calculate
the loads in every member. Green sheets for at least A-B, A-N, B-N, H-I, I-J, & H-J.(You
may check your work, but green sheets showing all work is required.
From HW - Statics, problem S - 2 , you have the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
