Question: From problem 2 HW 2 . Determine the safety factor if the pipe is made from cast iron ( BRITTLE ) . Include a sketch

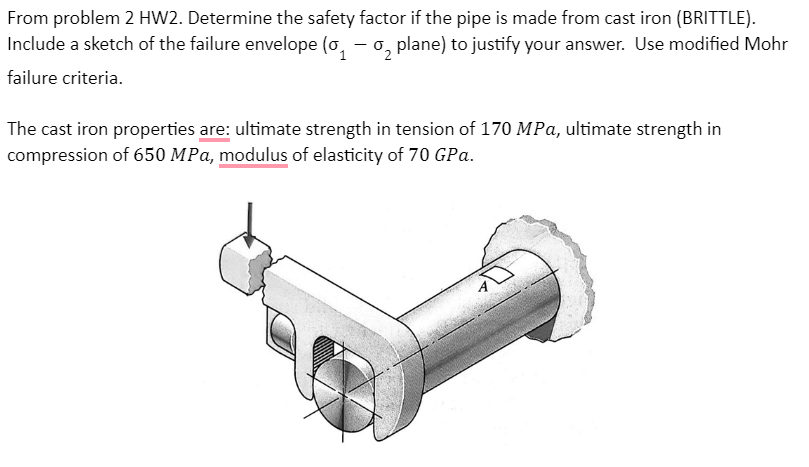

From problem 2 HW2. Determine the safety factor if the pipe is made from cast iron (BRITTLE).
Include a sketch of the failure envelope (1-2 plane) to justify your answer. Use modified Mohr
failure criteria.
The cast iron properties are: ultimate strength in tension of 170 MPa , ultimate strength in
compression of 650 MPa , modulus of elasticity of 70 GPa .
From problem 2 HW 2 . Determine the safety factor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
