Question: FT = 20 N 0 = 30 M= 5 kg HK = 0.1 1) A 5 kg box is being pulled rightward across a rough

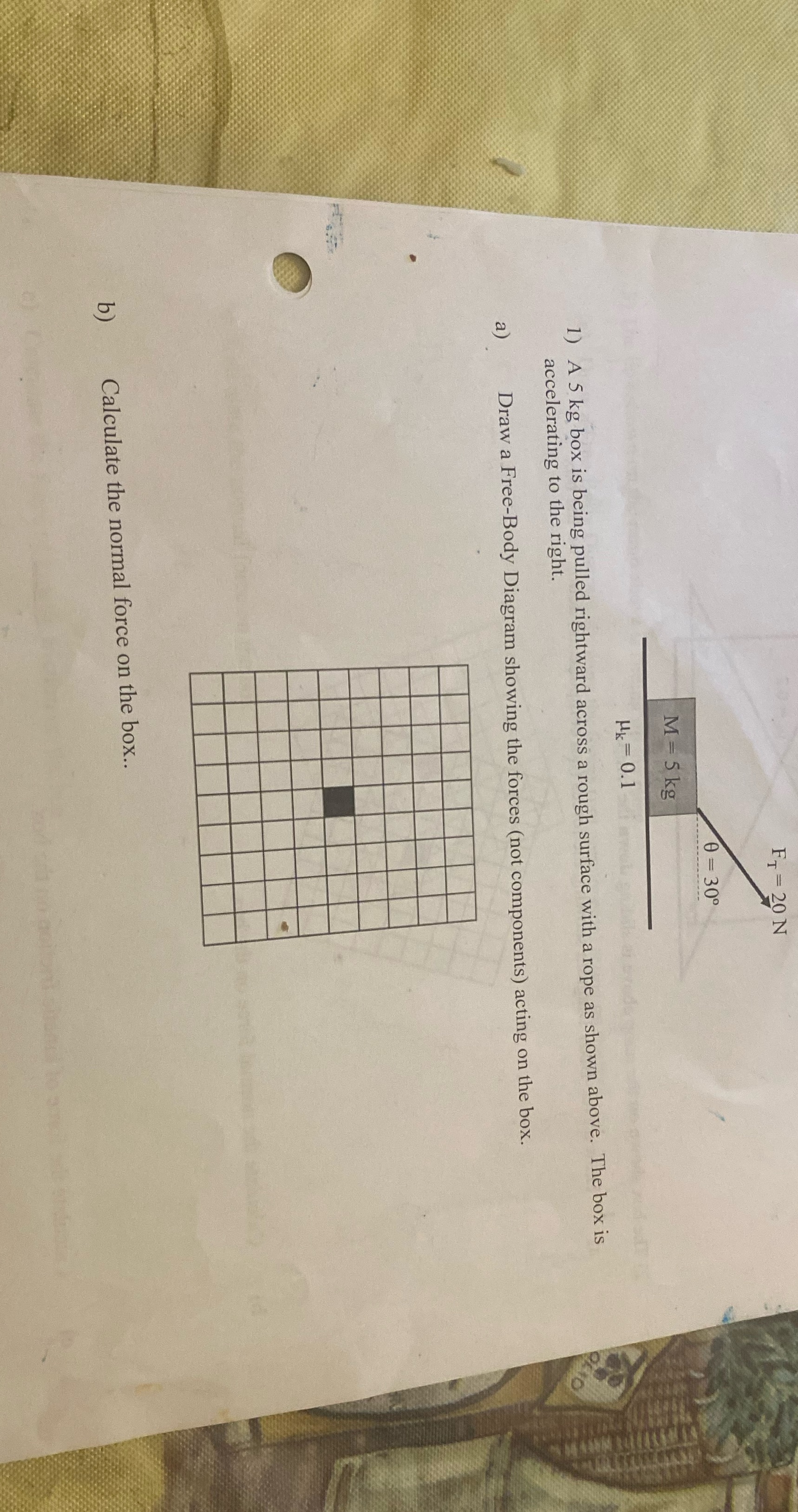

FT = 20 N 0 = 30 M= 5 kg HK = 0.1 1) A 5 kg box is being pulled rightward across a rough surface with a rope as shown above. The box is accelerating to the right. Draw a Free-Body Diagram showing the forces (not components) acting on the box. Calculate the normal force on the box

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Block 1 (19 kg) is located on the surface of a table. A rope pulls on block 1 with a tension of 207.4 N at an angle of 42.46 degrees above the horizontal. The coefficient of kinetic friction between...

5) An applied force of 20 N is used to accelerate an object at 3 mfsec2 to the right across a frictional surface. The object encounters 10 N of friction. Determine the normal force, the net force,...

Hii can you answer from question 1 to 11 I have no idea how to do them -ca Name: duct box 2-body (and friction and incline) problems Check simulation of any 2 object system...

This print out should have 19 questions. be within + 3.0% Multiple choice questions may continue on the next column or page - find all choices 007 (part 1 of 3) 10.0 points before answering- A block...

15. A length of rope is wrapped around a spool of weight W with inner radius / and outer radius R as shown above. The rope is pulled with a tension 7 at an angle 0. Which of the following conditions...

Questions in attachments. please explain your answers. Refer to the figure. 30 N 12N 30 ISN w. E ISN 160m 1. Find the total work done on the block. 2. The block has a mass of 18 kg and has an initial...

Exercises the mass is 1. A rope is attached to a 2.0 kg rock and pulled. Write a net force equation if a) accelerating up b) accelerating down ( T - mg = ma) mg - T = ma) c) Find the cord tension if...

Question 1 (1 point) A student is pushing toward the left on a heavy box that is resting on a rough surface. The box is not What forces are acting on the box and in which directions? force of gravity...

Procedure I Data Table 1: Mass and Weight Object Mass in g Mass in kg Weight in N Wooden Friction block 31.1 0.031 0.30 Glass /sandpaper friction block 55.6 0.056 0.55 50 g hanging mass 50 0.05 0.49...
