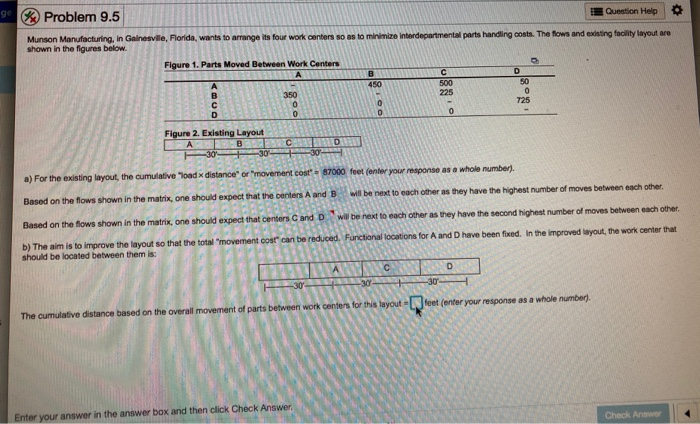

ge Problem 9.5 Question Help Munson Manufacturing, in Gainesville, Florida, wants to arrange its four work centers so as to minimize interdepartmental parts handling costs. The flows and existing facility layout are shown in the figures below. Figure 1. Parts Moved Between Work Centers B c D 450 500 50 350 225 0 C 0 0 725 D 0 0 0 Figure 2. Existing Layout B DI 300 30 -30 a) For the existing layout, the cumulative "lood x distance" or "movement cost" - 87000 feet (enter your response as a whole number). will be next to each other as they have the highest number of moves between each other. Based on the flows shown in the matrix, one should expect that the centers A and B Based on the flows shown in the matrix, one should expect that centers C and D will be next to each other as they have the second highest number of moves between each other. b) The aim is to improve the layout so that the total movement cost can be reduced. Functional locations for A and Dhave been fixed. In the improved layout, the work center that should be located between them is: A D -30 -30 + 30 The cumulative distance based on the overall movement of parts between work centers for this layout = teet (enter your response as a whole number) Enter your answer in the answer box and then click Check Answer Check
