Question: Given a T - frame with fixed supports in A , B , and C . The beams are linear elastic with constant bending stiffness

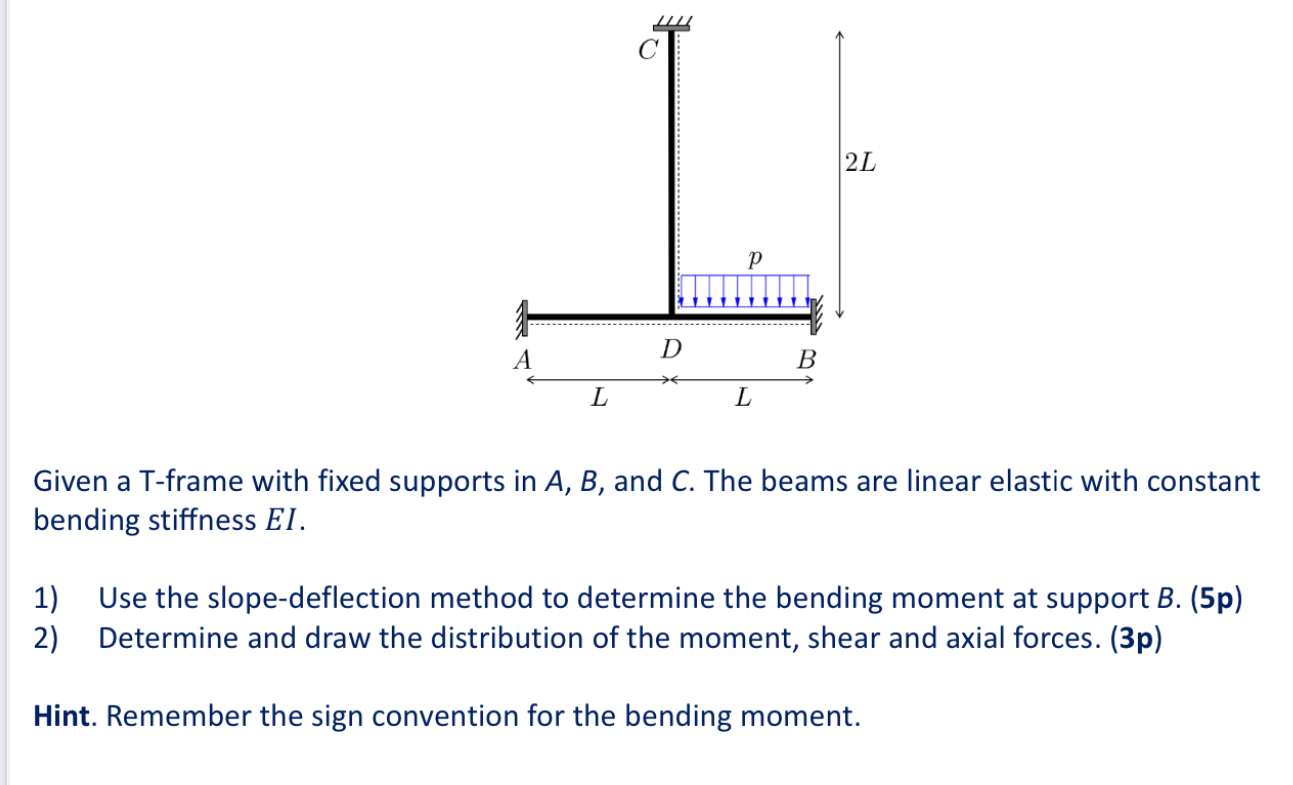

Given a T-frame with fixed supports in A,B, and C. The beams are linear elastic with constant bending stiffness EI.
Use the slope-deflection method to determine the bending moment at support B.(5p)
Determine and draw the distribution of the moment, shear and axial forces. (3p)
Hint. Remember the sign convention for the bending moment.
Given a T - frame with fixed supports in A , B ,
