Question: Given A uniformly distributed load and a sloped load with magnitude of 1 3 . 5 0 k N m are applied to the overhang

Given

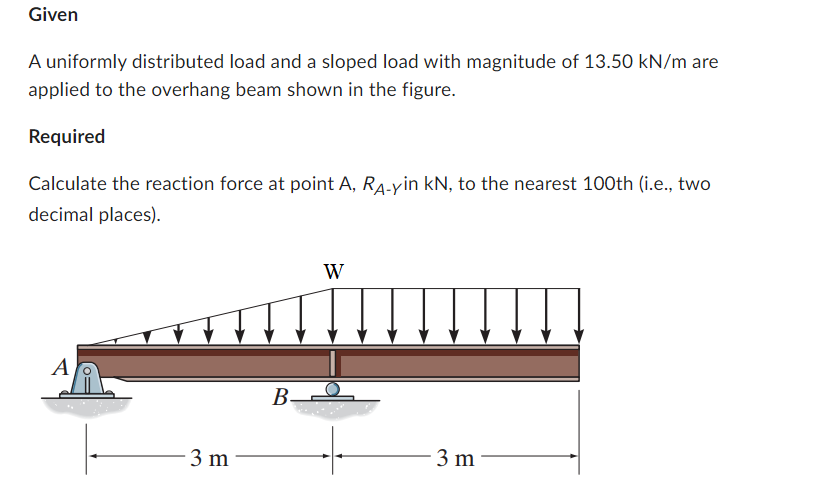

A uniformly distributed load and a sloped load with magnitude of 13.50kNm are applied to the overhang beam shown in the figure.
Required
Calculate the reaction force at point A,RA- in kN , to the nearest 100th (i.e., two decimal places).
Given A uniformly distributed load and a sloped

Step by Step Solution

There are 3 Steps involved in it
