Question: Given A uniformly distributed load and a sloped load with magnitude of 1 9 . 0 0 k N m are applied to the overhang

Given

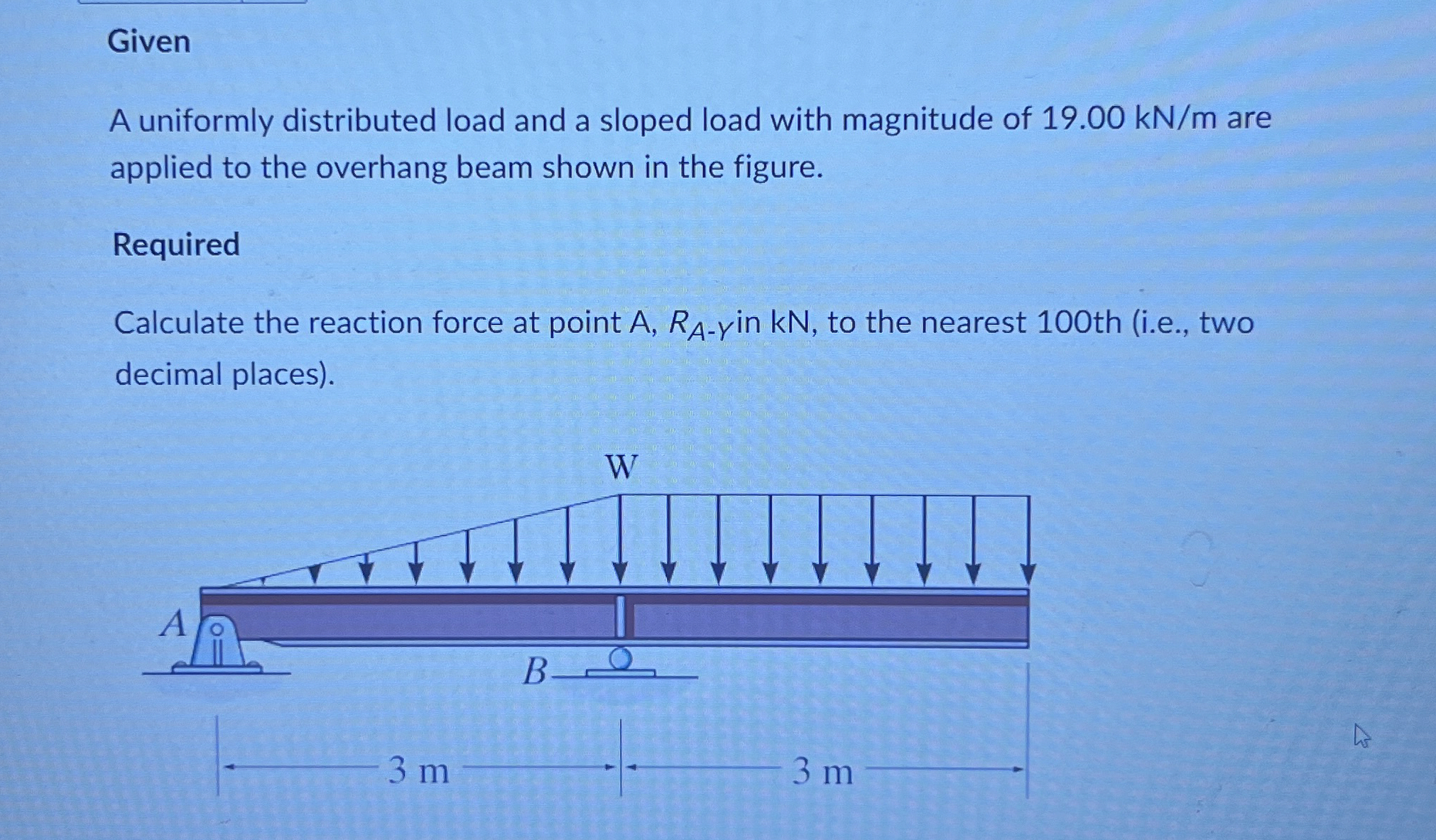

A uniformly distributed load and a sloped load with magnitude of 19.00kNm are applied to the overhang beam shown in the figure.
Required
Calculate the reaction force at point A,RA-Y in kN , to the nearest 100th (i.e., two decimal places).
Given A uniformly distributed load and a sloped

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
