Question: Given ( Concrete , reinforced unit weight = 2 3 . 6 kN / m ^ 3 ) & Answers with kN please The floor

Given
(Concrete, reinforced unit weight =23.6kN/m^3) & Answers with kN please

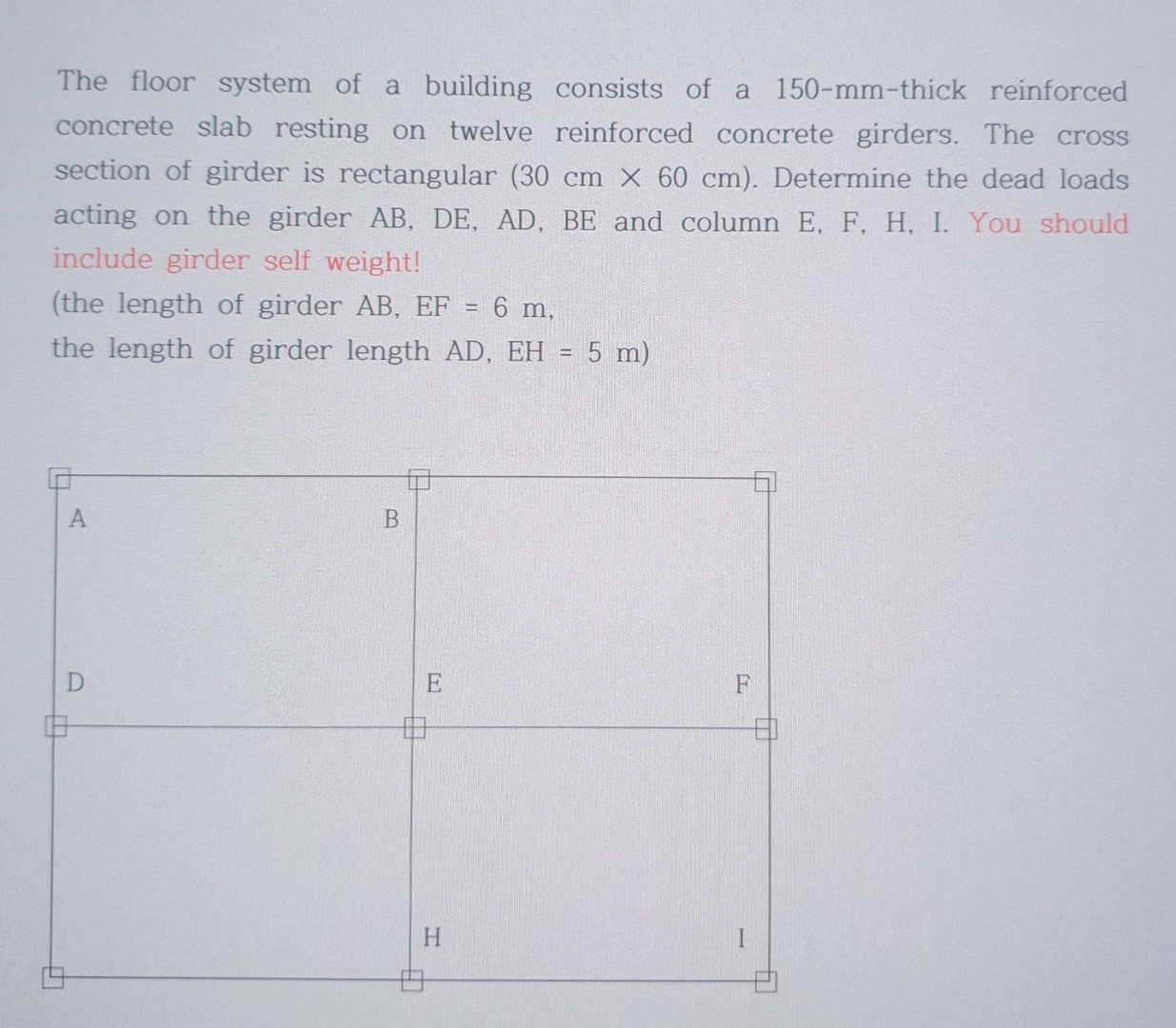

The floor system of a building consists of a 150-mm-thick reinforced concrete slab resting on twelve reinforced concrete girders. The cross section of girder is rectangular (30cm60cm). Determine the dead loads acting on the girder AB, DE, AD, BE and column E, F, H, I. You should include girder self weight!
(the length of girder AB,EF=6m,
the length of girder length AD,EH=5m)
Given ( Concrete , reinforced unit weight = 2 3 .
