Question: Given that the inputs to a 4 - to - 1 MUX, I _ ( 0 ) through I _ ( 3 ) , equal

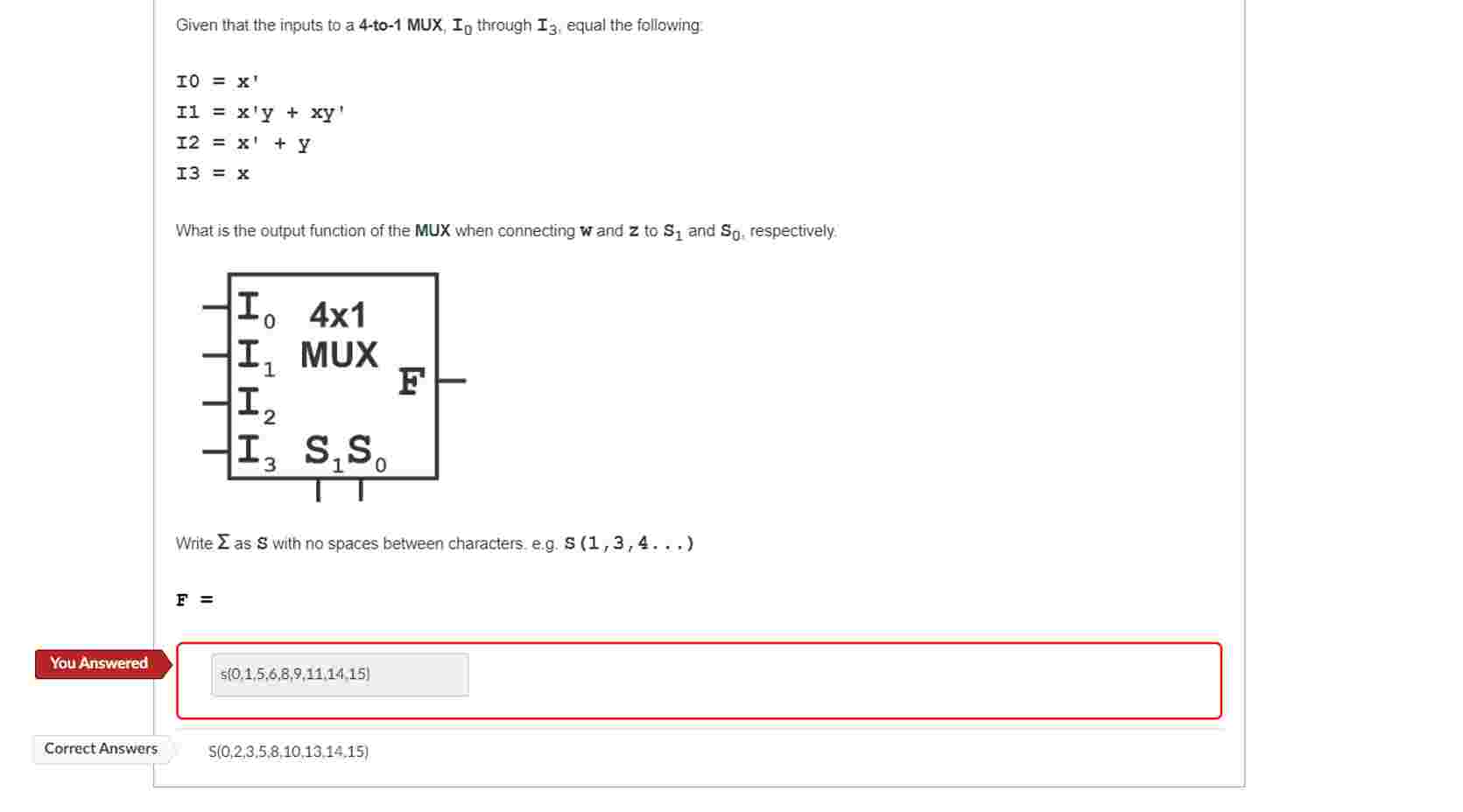

Given that the inputs to a 4-to-1 MUX, I_(0) through I_(3), equal the following:
I0=x^(')
I1=x^(')y+xy^(')
I2=x^(')+y
I3=x
What is the output function of the MUX when connecting w and z to S_(1) and S_(0), respectively.
Write \Sigma as S with no spaces between characters e.g. S(1,3,4dots)
F=
Given that the inputs to a 4 - to - 1 MUX, I _ (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
