Question: Given the beam shown. P = 5 k N . Each nail can resist a shear of 2 kN . Find the maximum spacing of

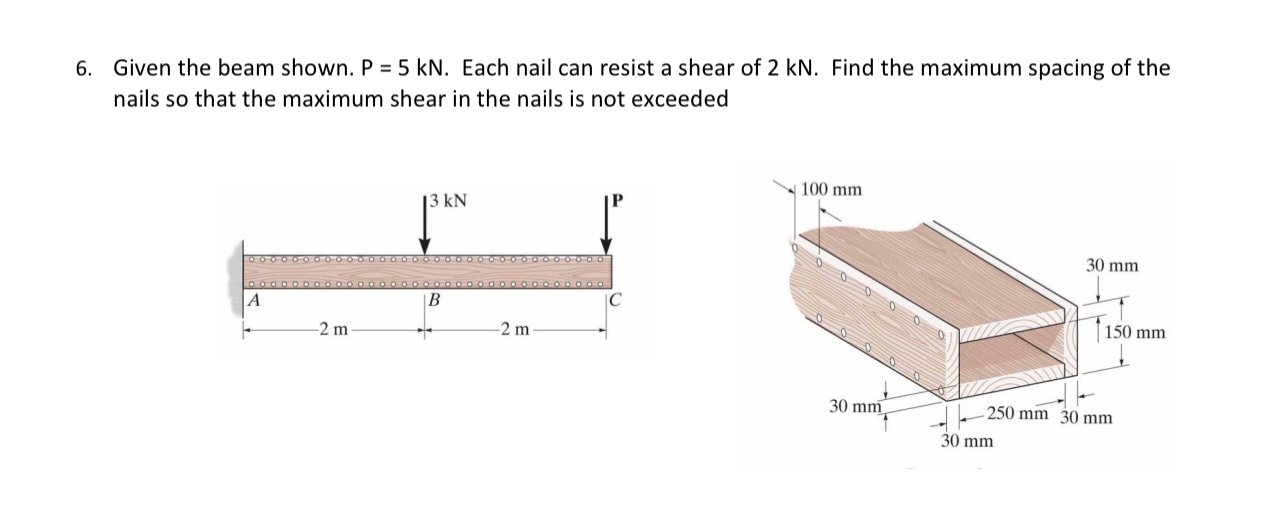

Given the beam shown. P=5kN. Each nail can resist a shear of 2 kN . Find the maximum spacing of the nails so that the maximum shear in the nails is not exceeded
Given the beam shown. P = 5 k N . Each nail can

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
