Question: Given the below network diagram, please: 1 - Complete the LS and LF portions of the table 2. Indicate which items are critical activities (Yes

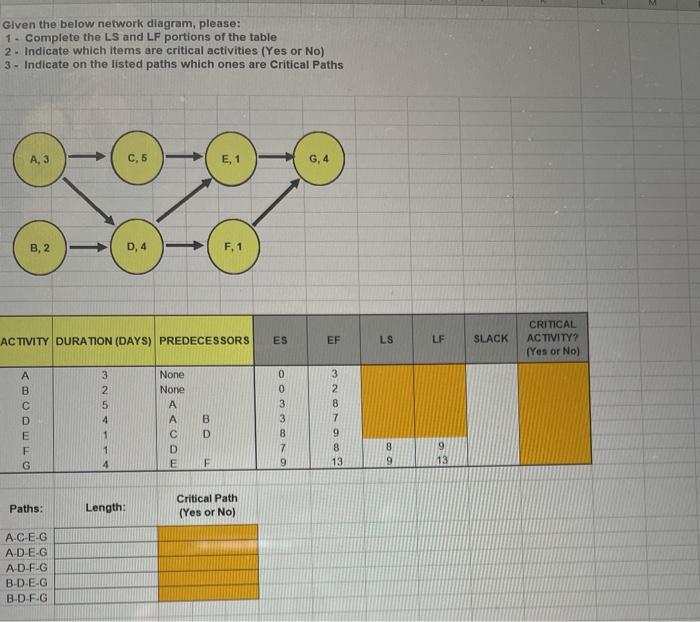

Given the below network diagram, please: 1 - Complete the LS and LF portions of the table 2. Indicate which items are critical activities (Yes or No) 3 - Indicate on the listed paths which ones are Critical Paths C,5 E, 1 G, 4 B, 2 D, 4 -- F, 1 ACTIVITY DURATION (DAYS) PREDECESSORS ES EF LS LF SLACK CRITICAL ACTIVITY? (Yes or No) 3 2 5 0 0 3 4 None None A D E B D D E F G 3 2 8 7 9 8 13 8 9 4 F 9 Paths: Length: Critical Path (Yes or No) A.C.EG A-D-EG AD-F-G B-DE-G B.D.F.G
