Question: Given the below table, draw the Activity on Node (AON) diagram on a paper, make all network calculations (you don't have to submit the network

Given the below table, draw the Activity on Node

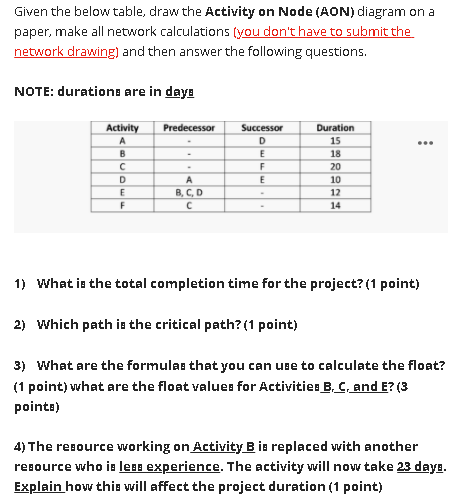

Given the below table, draw the Activity on Node (AON) diagram on a paper, make all network calculations (you don't have to submit the network drawing) and then answer the following questions. NOTE: durations are in daye Predecessor . Activity A B D E F Successor D E F E Duration 15 18 20 10 12 14 B, CD 1) What is the total completion time for the project? (1 point) 2) Which path is the critical path? (1 point) 3) What are the formules that you can uee to calculate the float? (1 point) what are the float value for Activitie: B, C. and E? (3 points) 4) The resource working on Activity B is replaced with another resource who ie leer experience. The activity will now take 23 dayo. Explain how this will affect the project duration (1 point)

Step by Step Solution

There are 3 Steps involved in it
