Question: Given the fastener pattern shown with all fasteners being UNC 1 0 - 2 4 , subjected to F = 5 0 lbf at the

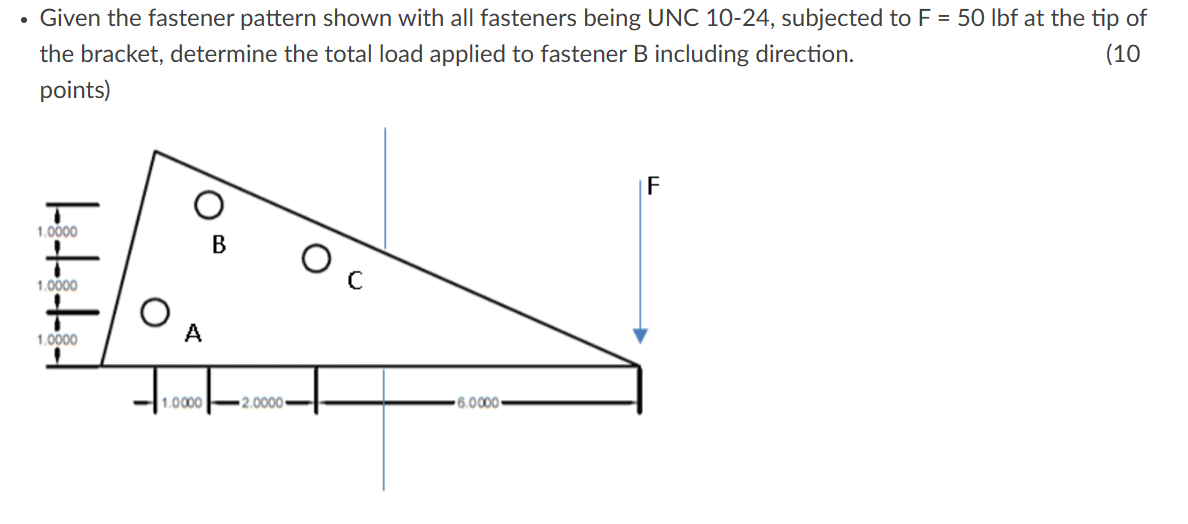

Given the fastener pattern shown with all fasteners being UNC 10-24, subjected to F =50 lbf at the tip of the bracket, determine the total load applied to fastener B including direction.
Given the fastener pattern shown with all

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
