Question: Given the following distributed loading with p = 4 / / m , a - 4 m and b - 2 m . Replace the

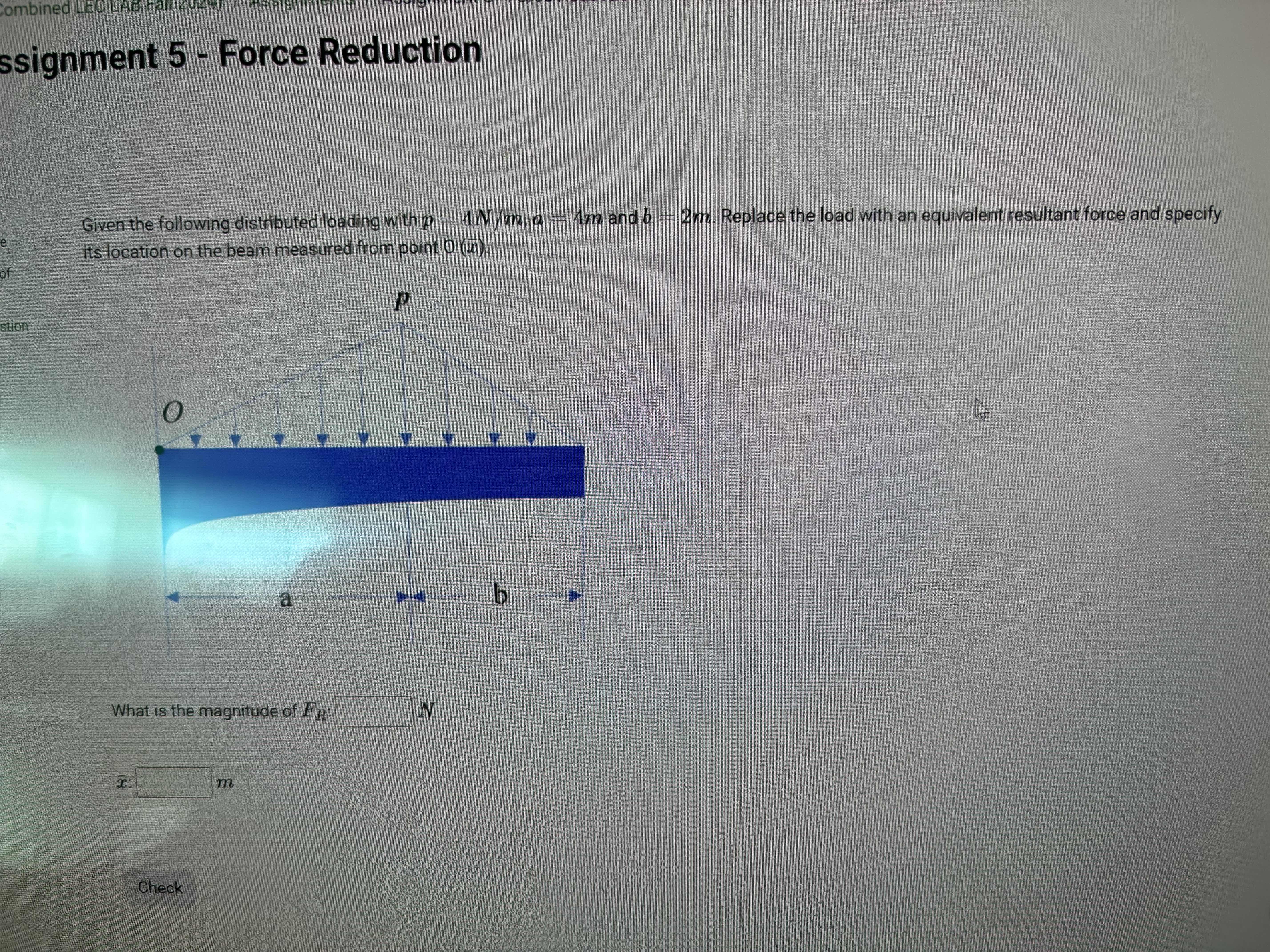

Given the following distributed loading with p =4//m, a -4m and b -2m. Replace the load with an equivalent resultant force and specifyits location on the beam measured from point O ()
Given the following distributed loading with p =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
