Question: Given the following loading scenario: Uniform DL ( DC ) = 1 7 k N m , L L = Permit Vehicle ( as shown

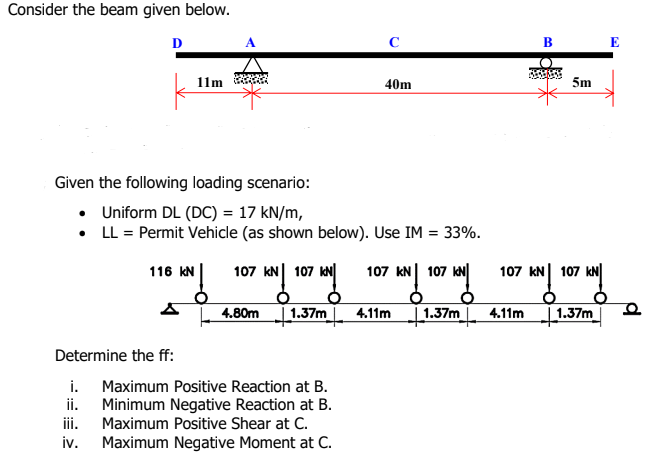

Given the following loading scenario:
Uniform DL (DC)=17kNm,
LL= Permit Vehicle (as shown below). Use IM =33%.
Determine the ff:
i. Maximum Positive Reaction at B.
ii. Minimum Negative Reaction at B.
iii. Maximum Positive Shear at C.
iv. Maximum Negative Moment at C .
Given the following loading scenario: Uniform DL

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
