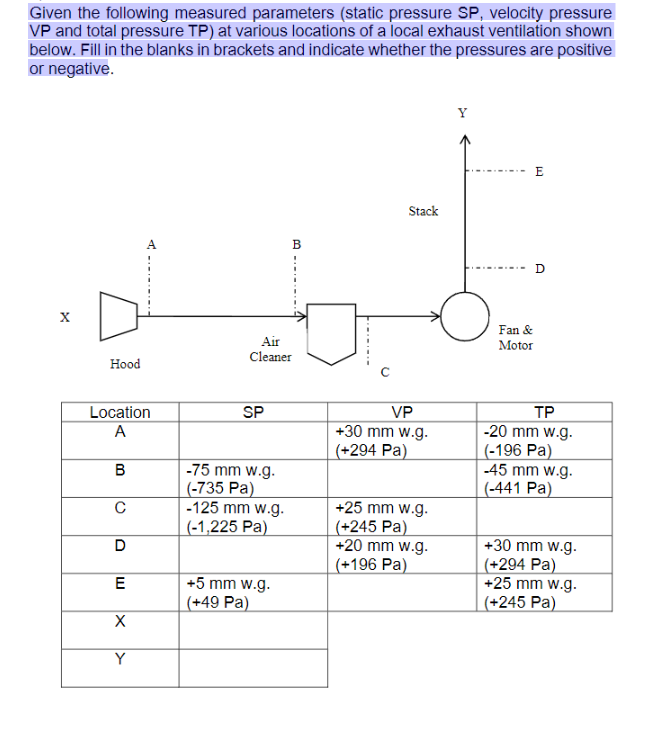

Question: Given the following measured parameters ( static pressure SP , velocity pressure VP and total pressure TP ) at various locations of a local exhaust

Given the following measured parameters

(

static pressure SP

,

velocity pressure VP and total pressure TP

)

at various locations of a local exhaust ventilation shown below. Fill in the blanks in brackets and indicate whether the pressures are positive or negative.
