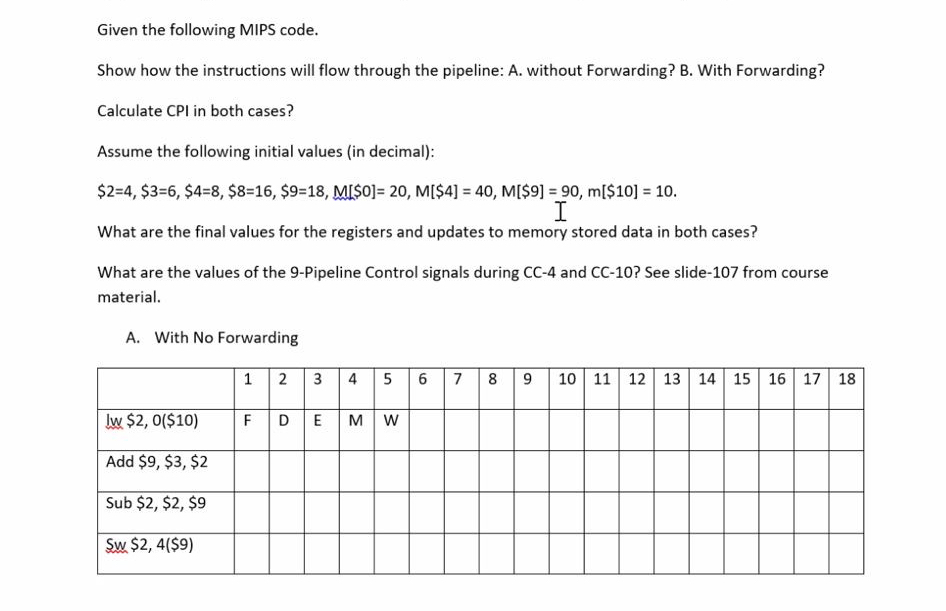

Question: Given the following MIPS code. Show how the instructions will flow through the pipeline: A . without Forwarding? B . With Forwarding? Calculate CPI in

Given the following MIPS code.
Show how the instructions will flow through the pipeline: A. without Forwarding? B. With Forwarding?
Calculate CPI in both cases?
Assume the following initial values (in decimal):
$2=4,$3=6,$4=8,$8=16,$9=18,M[$0]=20,M[$4]=40,M[$9]=90,m[$10]=10.
What are the final values for the registers and updates to memory stored data in both cases?
What are the values of the 9-Pipeline Control signals during CC-4 and CC-10? See slide-107 from course material.
A. With No Forwarding
\table[[,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],[Iw $2,0($10),F,D,E,M,W,,,,,,,,,,,,,],[Add $9, $3, $2,,,,,,,,,,,,,,,,,,],[Sub $2, $2, $9,,,,,,,,,,,,,,,,,,],[Sw $2,4($9),,,,,,,,,,,,,,,,,,]]
