Question: Given the following sequential circuit: A D Q D-FF Clk B D N D-FF CP) CIK A sequential circuit with two D Flip-Flops, A and

Given the following sequential circuit: A D Q

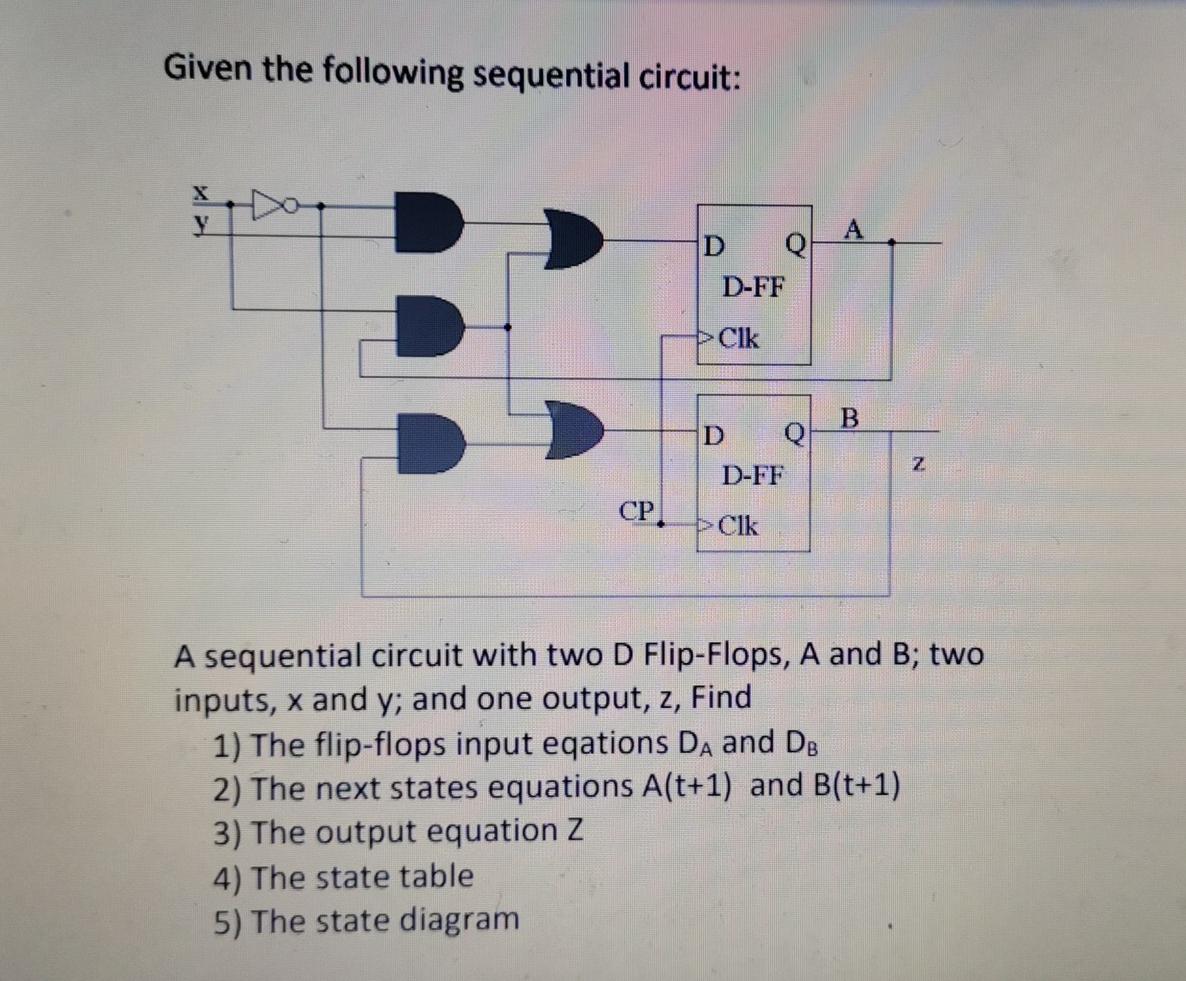

Given the following sequential circuit: A D Q D-FF Clk B D N D-FF CP) CIK A sequential circuit with two D Flip-Flops, A and B; two inputs, x and y; and one output, z, Find 1) The flip-flops input eqations DA and De 2) The next states equations A(t+1) and B(t+1) 3) The output equation Z 4) The state table 5) The state diagram

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
