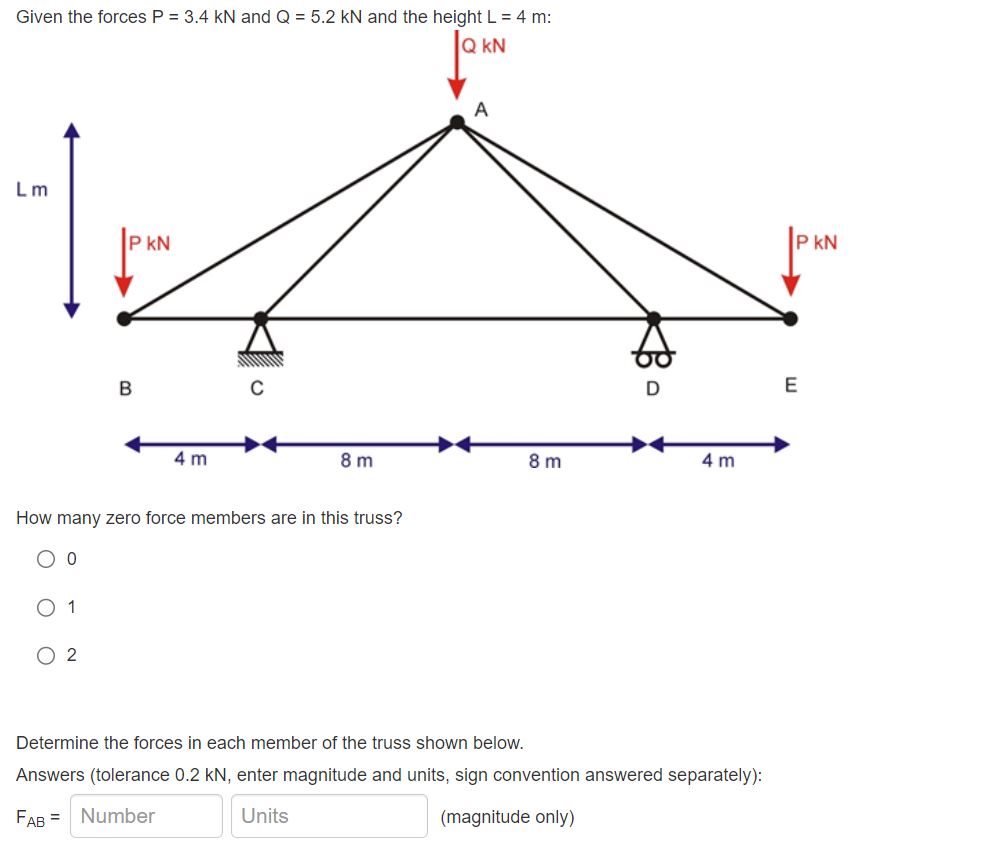

Given the forces P $=3\mathrm{.}4$ kN and Q $=5\mathrm{.}2$ kN and the height L $=4$ m:

How many zero force members are in this truss?

$0$

$1$

$2$

Determine the forces in each member of the truss shown below.

Answers $($tolerance $0\mathrm{.}2$ kN$,$ enter magnitude and units, sign convention answered separately$)$:

FAB $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FBC $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FAC $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FCD $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FAD $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FAE $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

Compression

FDE $=$

Number

Units

$($magnitude only$)$

Tension or Compression?

Tension

CompressionGiven the forces $P=3\mathrm{.}4kN$ and $Q=5\mathrm{.}2kN$ and the height $L=4m$ :

How many zero force members are in this truss?

$0$

$1$

$2$

Determine the forces in each member of the truss shown below.

Answers $($tolerance $0\mathrm{.}2kN,$ enter magnitude and units, sign convention answered separately$)$:

$F_{AB}=$

$($magnitude only$)$
