Question: Given the function W = (A xor C) +B, fill in the truth-table below. A B C w 0 0 0 0 0 1 0

Given the function W = (A xor C) +B, fill in

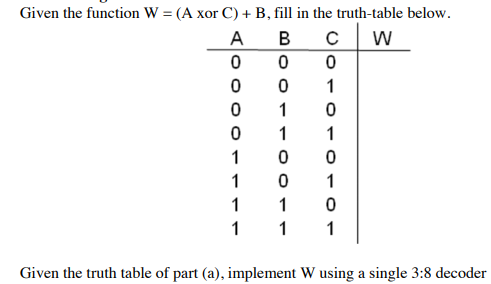

Given the function W = (A xor C) +B, fill in the truth-table below. A B C w 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Given the truth table of part (a), implement W using a single 3:8 decoder

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
