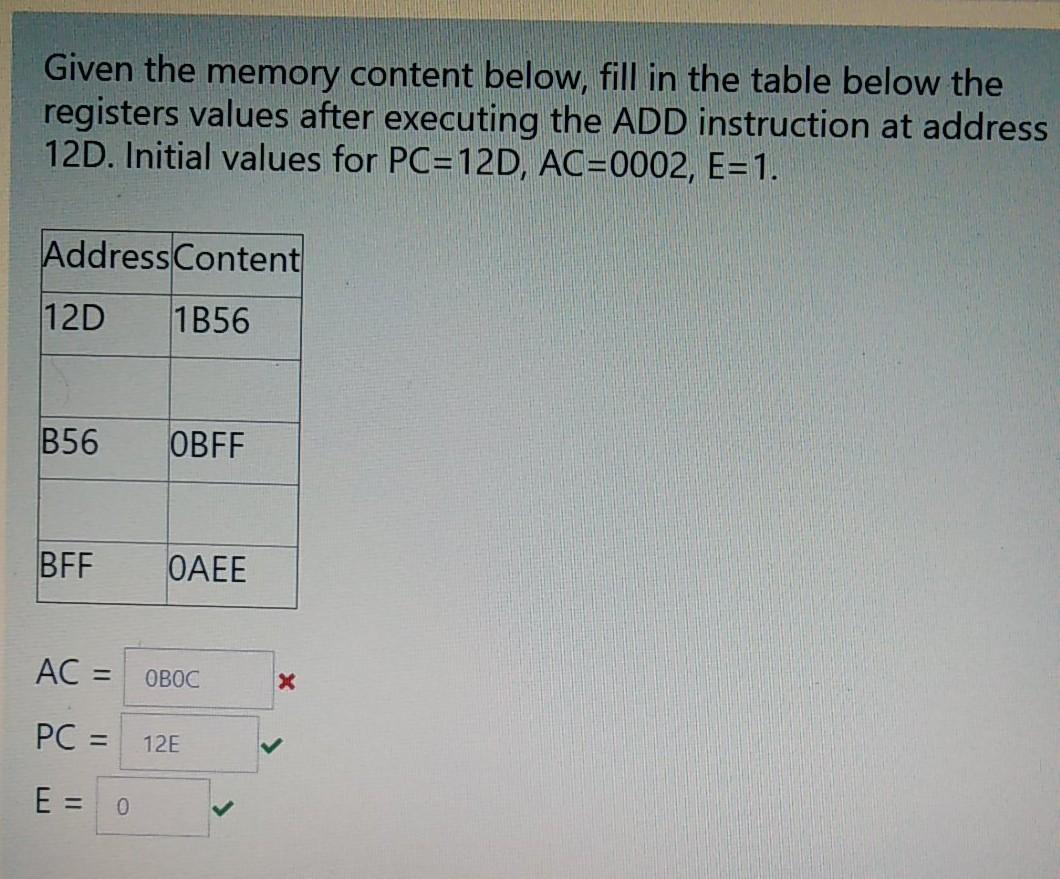

Question: Given the memory content below, fill in the table below the registers values after executing the ADD instruction at address 12D. Initial values for PC=12D,

Given the memory content below, fill in the table below the

registers values after executing the ADD instruction at address 12D. Initial values

for PC=12D, AC=0002, E=1. Address Content 12D 1B56 B56 OBFF BFF OAEE

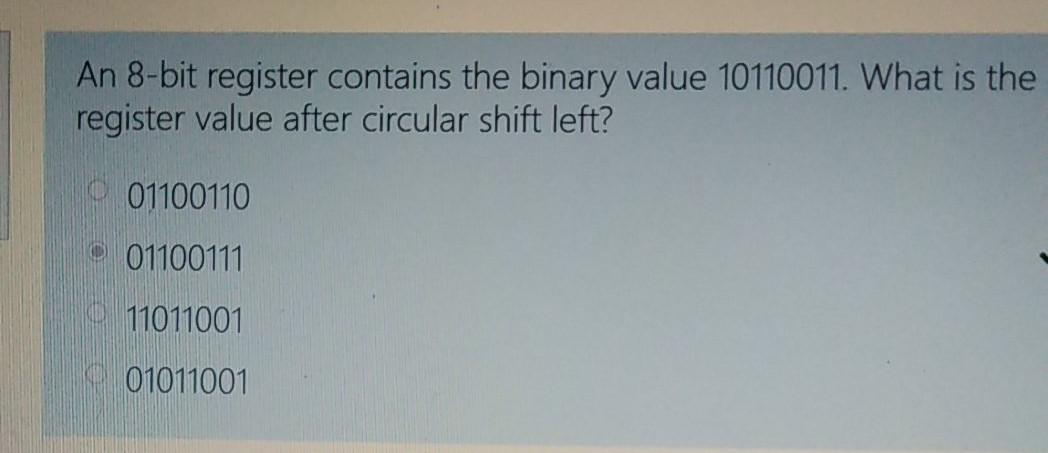

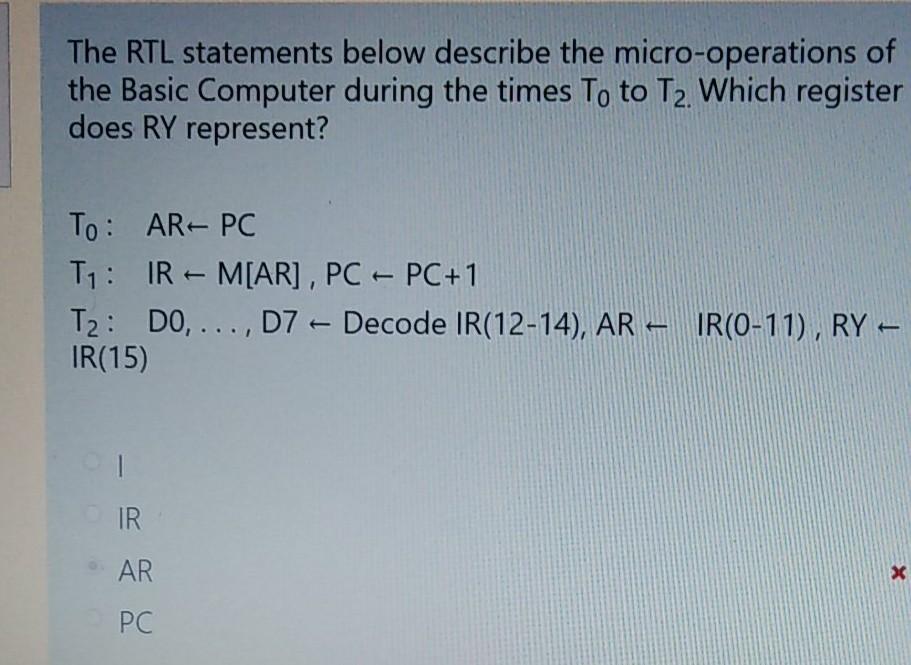

Given the memory content below, fill in the table below the registers values after executing the ADD instruction at address 12D. Initial values for PC=12D, AC=0002, E=1. Address Content 12D 1B56 B56 OBFF BFF OAEE AC = OBOC X PC = 12E E = 0 An 8-bit register contains the binary value 10110011. What is the register value after circular shift left? 01100110 01100111 11011001 01011001 The RTL statements below describe the micro-operations of the Basic Computer during the times To to T2. Which register does RY represent? To: AR- PC T1: IR - M[AR], PC - PC+1 T2: DO, ..., D7 - Decode IR(12-14), AR IR(0-11), RY - IR(15) 1 IR AR PC
