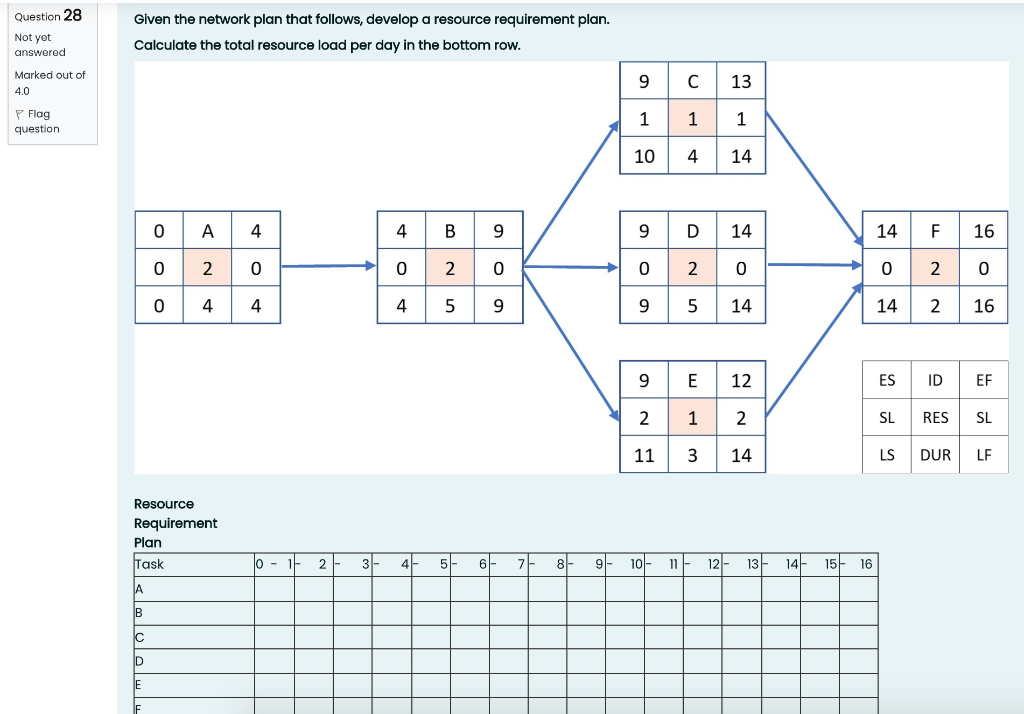

Given the network plan that follows, develop a resource requirement plan.

Calculate the total resource load per day in the bottom row.

Resource Requirement Plan
Task		0 - 1	- 2	- 3	- 4	- 5	- 6	- 7	- 8	- 9	- 10	- 11	- 12	- 13	- 14	- 15	- 16
A
B
C
D
E
F
G
Day		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Resources

Use the table below or Excel file to show your calculations:

Resource Requirement Plan
Task		0 - 1	- 2	- 3	- 4	- 5	- 6	- 7	- 8	- 9	- 10	- 11	- 12	- 13	- 14	- 15	- 16
A
B
C
D
E
F
G
Day		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Resources

Question 29

What is the project's critical path?

a.

A-B-D-F

b.

A-B-C-F

c.

A-B-E-F

Question 30

Considering your computations in the previous question, what is the maximum number of resources required on the project daily?

Answer:

Question 31

Considering your computations in the previous question, what is the minimum number of resources required on the project daily?

Answer:

Question 28 Not yet answered Given the network plan that follows, develop a resource requirement plan. Calculate the total resource load per day in the bottom row. Marked out of 9 13 4.0 P Flag question 1 1 1 10 4 14 4 B 9 9 D 14 14 TI 16 OOO A 4 0 2 0 4 4 0 2 0 0 2 0 0 2 0 4 5 9 9 5 14 14 2 16 9 E 12 ES ID EF 2 1 2 SL RES SL 11 3 14 LS DUR LF Resource Requirement Plan Task 0 - 11 2 31- 41- 5- 61 7 81- 9 - 10- 11 121- 13 14 15 16 A B D
