Question: Given: V s = 9 V R 1 = 1 Kohm, R 2 = 2 Kohm, R 3 = 2 Kohm, R 4 = 3

Given:
Vs=9V
R1=1Kohm,R2=2Kohm,R3=2Kohm,R4=3Kohm,R5=2Kohm,R6=5Kohm
Calculate

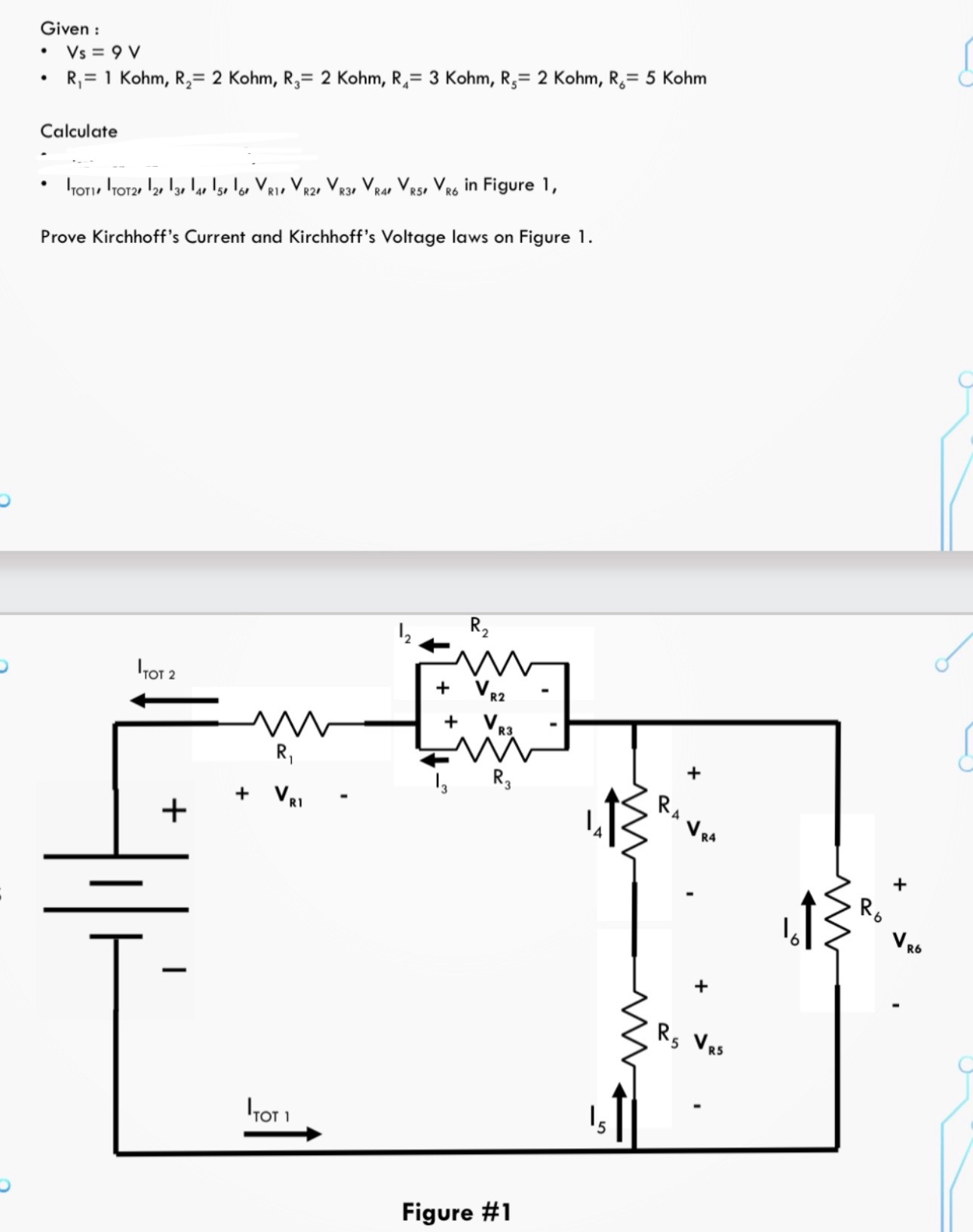

ITOI1,ITO2,I2,I3,I4,I5,I6,VR1,VR2,VR3,VR4,VR5,VR6 in Figure 1,
Prove Kirchhoff's Current and Kirchhoff's Voltage laws on Figure 1.
Given: V s = 9 V R 1 = 1 Kohm, R 2 = 2 Kohm, R 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
