Question: Hand written solution required 5. Sketch the field lines for the following electrodes, drawing minimum 5 equipotential surfaces (lines) indicating their estimated values (estimate according

Hand written solution required

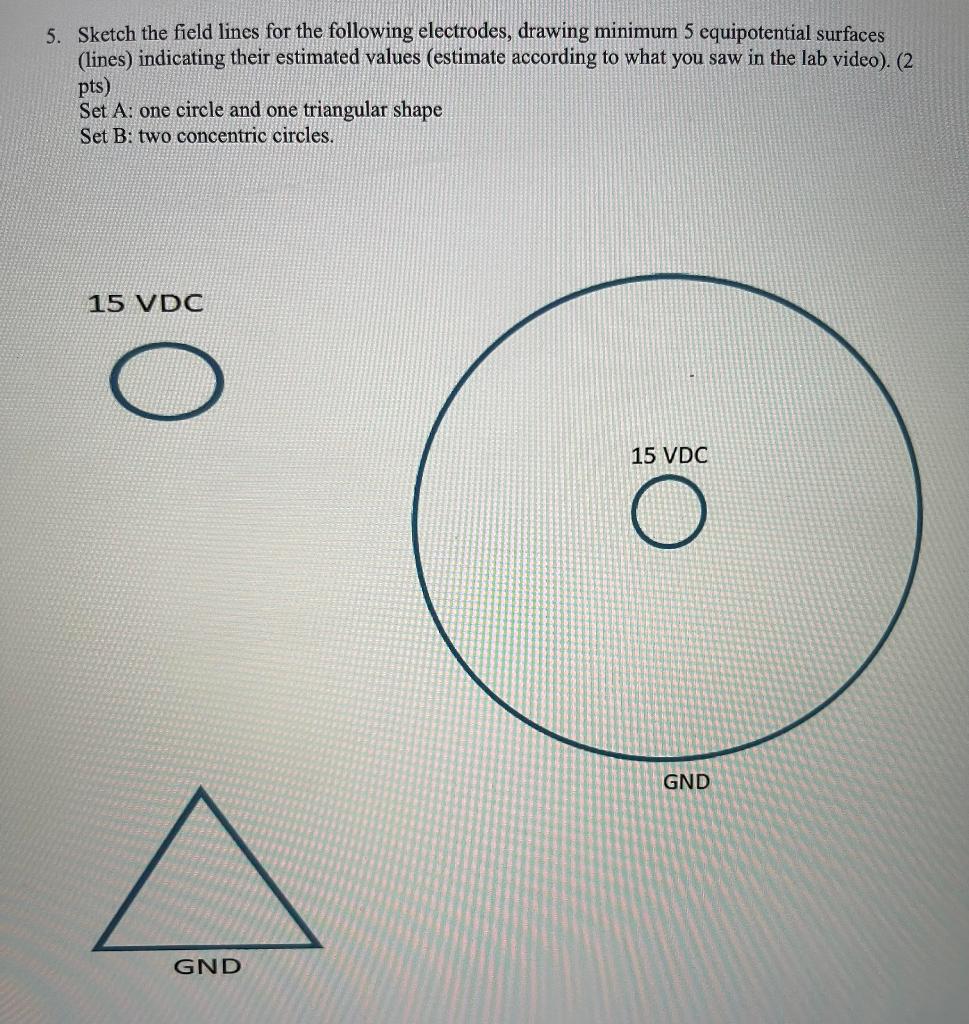

5. Sketch the field lines for the following electrodes, drawing minimum 5 equipotential surfaces (lines) indicating their estimated values (estimate according to what you saw in the lab video). (2 pts) Set A: one circle and one triangular shape Set B: two concentric circles. 15 VDC O 15 VDC GND GND
