Question: Help me write the matlab code Problems 75 Use MATLAB to compute the energy stored by the inductor for time O sis 0.2s Plot stored

Help me write the matlab code

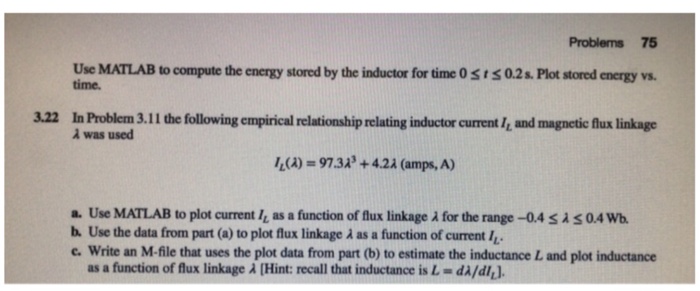

Problems 75 Use MATLAB to compute the energy stored by the inductor for time O sis 0.2s Plot stored energy vs time 322 In Probskem . 1the folwing empiricarelationship relating indtar curent, magpnetic fux inlage A was used 4(a)s 97.32? + 4.24 (amps, A) a. Use MATLAB to plot current h as a function of flux linkage for the range-0.4 0.4 wh b. Use the data from part (a) to plot flux linkage as a function of current/ e. Write an M-file that uses the plot data from part (b) to estimate the inductance L and plot inductance as a function of flux linkage [Hint: recall that inductance is L-da/d
