Question: Help needed in Embedded Systems Problem ! Thanx Part-3: Consider you are interfacing a Common anode seven segment display with LPC1769 MCU to show BCD

Help needed in Embedded Systems Problem ! Thanx

Help needed in Embedded Systems Problem ! Thanx Part-3: Consider you are

interfacing a Common anode seven segment display with LPC1769 MCU to show

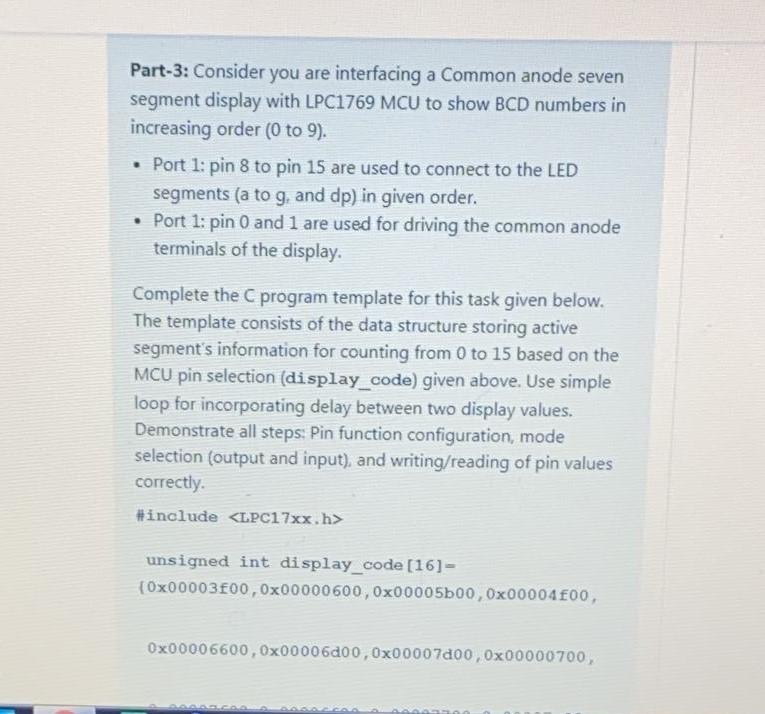

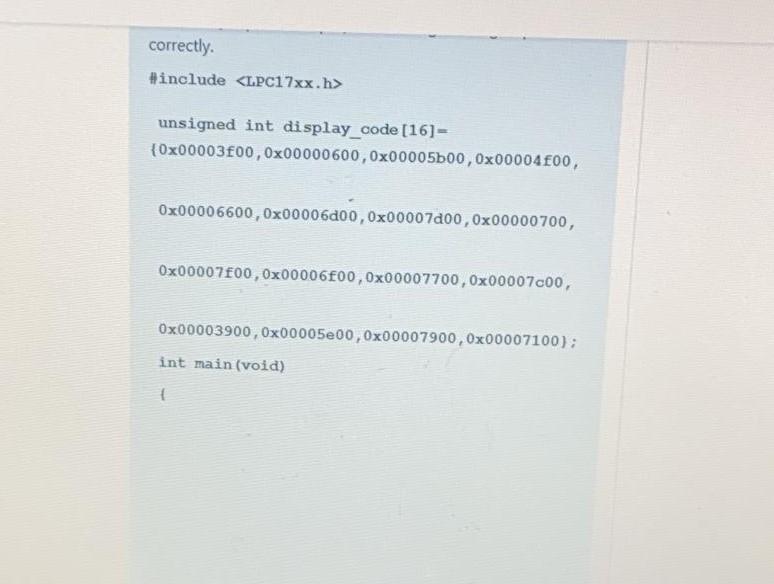

Part-3: Consider you are interfacing a Common anode seven segment display with LPC1769 MCU to show BCD numbers in increasing order (0 to 9). Port 1: pin 8 to pin 15 are used to connect to the LED segments (a to g, and dp) in given order. Port 1: pin 0 and 1 are used for driving the common anode terminals of the display. Complete the C program template for this task given below. The template consists of the data structure storing active segment's information for counting from 0 to 15 based on the MCU pin selection (display_code) given above. Use simple loop for incorporating delay between two display values. Demonstrate all steps: Pin function configuration, mode selection (output and input), and writing/reading of pin values correctly. #include unsigned int display_code [16] - (0x0000300, 0x00000600 , 0x00005600, 0x00004800, 0x00006600 , 0x00006000 , 0x00007800 , 0x00000700 correctly. #include unsigned int display_code (16)- {0x00003600, 0x00000600,0x00005000, 0x00004800, 0x00006600, 0x00006000 , 0x00007000, 0x00000700, 0x00007800, 0x00006100, 0x00007700, 0x00007c00, 0x00003900 , 0x00005e00, 0x00007900, 0x00007100); int main(void)
