Question: HELP PLEASE SHOW ALL STEPS FOR BOTH PARTS & EXPLAIN A ) Two - port networks N 1 and N 2 are connected in parallel.

HELP PLEASE

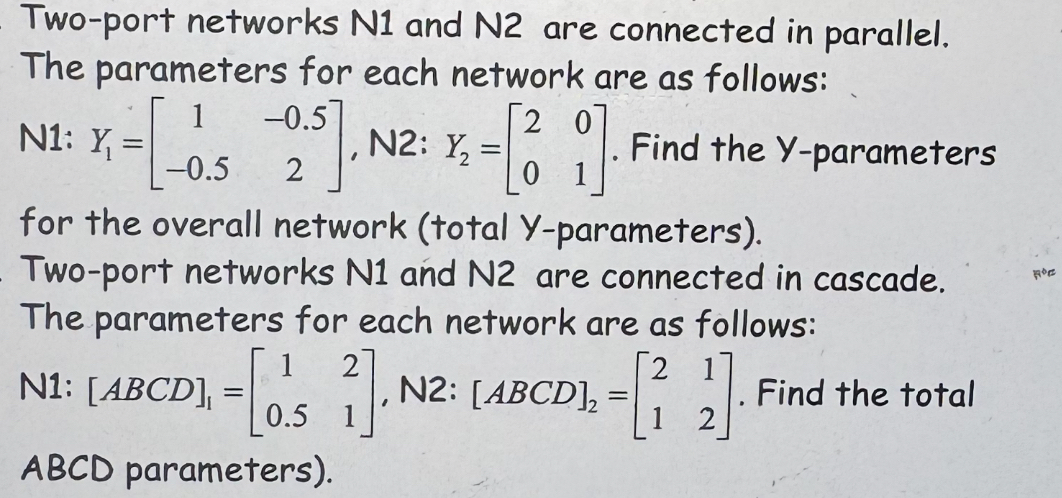

SHOW ALL STEPS FOR BOTH PARTS & EXPLAIN A) Two-port networks N1 and N2 are connected in parallel.
The parameters for each network are as follows:
N1:Y1=[1-0.5-0.52],N2:Y2=[2001]. Find the Y-parameters
for the overall network (total Y-parameters).
B) Two-port networks N1 and N2 are connected in cascade.
The parameters for each network are as follows:
N1:[ABCD]1=[120.51],N2:[ABCD]2=[2112]. Find the total ABCD parameters).
HELP PLEASE SHOW ALL STEPS FOR BOTH PARTS &
