Question: Hi please help me solve this within 25 mins pls. Its about circuits . Each resistance should have power,voltage,current and resistance. I need to solve

Hi please help me solve this within 25 mins pls. Its about circuits . Each resistance should have power,voltage,current and resistance. I need to solve them

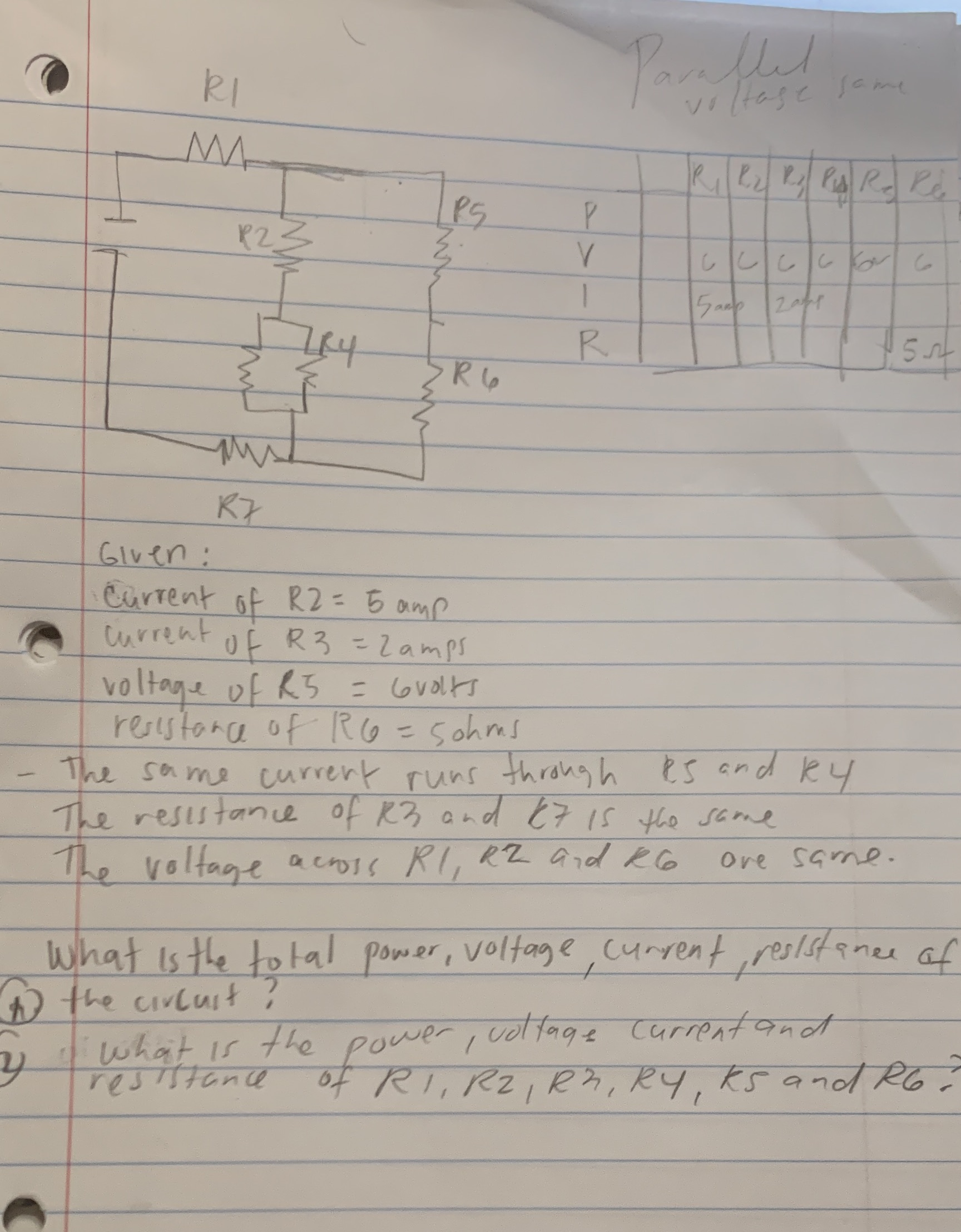

Parallel voltage some MA PS Y C C C - Samp R 5 n R6 Given : Current of R 2 = 5 amp Current of R 3 = 2 amps voltage of RS = 6Volts resistance of RG = Sohms - The same current runs through es and key The resistance of RS and E7 is the same The voltage across RI, RZ and RG ove sarne. what is the total power, voltage current, resistance of 1 the circuit? what is the power, voltage current and resistance of RI, RZ, RX, RY, ks and R6
