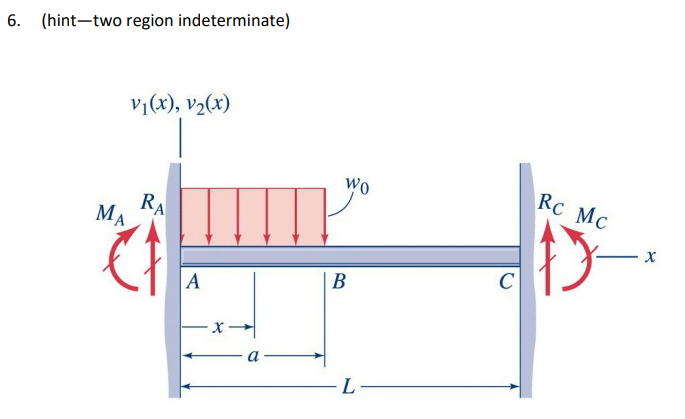

Question: ( hint - two region indeterminate ) Please draw a free body diagram and write down the summation of forces in the y - direction

(hint-two region indeterminate)
Please draw a free body diagram and write down the summation of forces in the y-direction and summation of moments about a point (any point you want to pick that is convenient), write down the support boundary conditions of the beam, and the matching boundary conditions, determine the moment equation as a function of x for each segment of the beam, integrate EIv= M for each segment to first determine EIv and then EIv (where v is the slope equation and v is the deflection equation) while accounting for the necessary constants of integration, apply the support BCs and, if appropriate, any apply any matching BCs and finally list the number of unknowns in your equations and label the equations from part h (and any statics equations) that would need to be used to find the support reactions and constants of integration
( hint - two region indeterminate ) Please draw a
