Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that...

Transcribed Image Text:

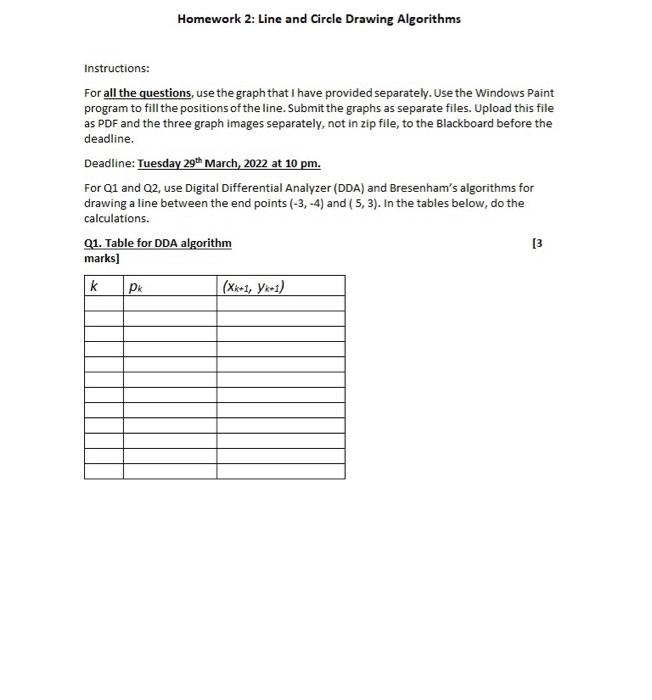

Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors Homework 2: Line and Circle Drawing Algorithms Instructions: For all the questions, use the graph that I have provided separately. Use the Windows Paint program to fill the positions of the line. Submit the graphs as separate files. Upload this file as PDF and the three graph images separately, not in zip file, to the Blackboard before the deadline. Deadline: Tuesday 29th March, 2022 at 10 pm. For Q1 and Q2, use Digital Differential Analyzer (DDA) and Bresenham's algorithms for drawing a line between the end points (-3, -4) and ( 5, 3). In the tables below, do the calculations. Q1. Table for DDA algorithm marks] k pk (XK2, VkI) [3 Q2. Table for Bresenham's algorithm marks] k Pk (XKI, VKHI) [3 Q3. Add the points of a circle in the table using the Mid-circle algorithm for a circle with radius 7 and centered at (5, 7). [4 marks] k pk (XK+1, YK+1) | 2XK+1 2yk+1 How to use Paint to draw line or circle. • Choose the Rectangle shape • Choose same color 1 and color 2. Any color of your choice. • Draw a square in the selected pixel. • In the example below, the center is (0, 0) and the selected blue pixel is (2, 3). File Paste Home cu lly coo Clipboard graph-cartesian-Paint View Select CHO Rotate ¹15 x 16px ZA Tools WODOGA- Outine DOOOD OODAM Brushes 0+0000 EN 642x770px Size: 63.5KB 5. Color Color 2 Colors

Answer rating: 100% (QA)

K 0 1 2 3 4 5 6 7 here Ax 53 8 Ay347 Pk 6 4 2 0 2 14 12 10 so slope of l... View the full answer
