Question: how can I draw this or write it? Module 4: Design a logically equivalent circuit to the one below (Create a truth table and draw):
how can I draw this or write it?

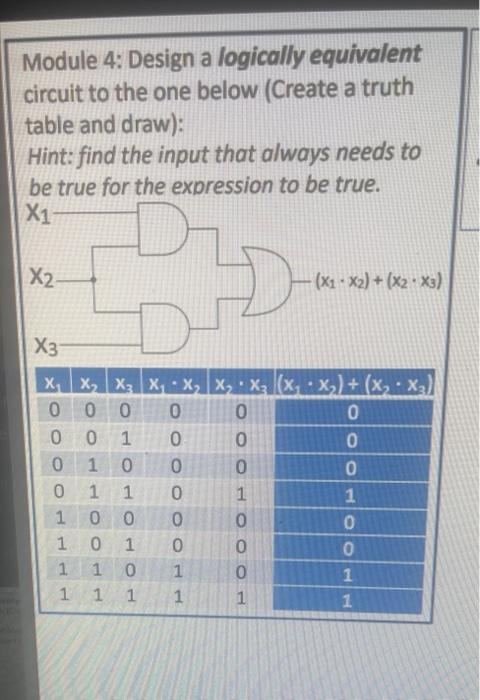

Module 4: Design a logically equivalent circuit to the one below (Create a truth table and draw): Hint: find the input that always needs to be true for the expression to be true. X1 X2 D (x1 * x2) + (x2 * x3) + + ) X3 x, x, X3 X, X, X, X: (x, .x) + (x, . x3) 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 1 1 0 1 1 1 0 0 0 0 0 1 0 1 0 0 0 1 1 0 1 0 1 1 1 1 1 1 1
