Question: how , can u explain it (3 Points) Draw a block diagram for TDM PCM system that will accommodate four 300 bps synchronous digital inputs

how , can u explain it

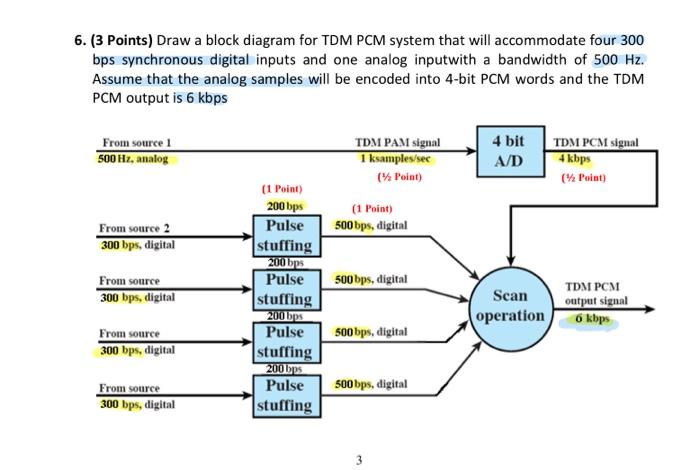

(3 Points) Draw a block diagram for TDM PCM system that will accommodate four 300 bps synchronous digital inputs and one analog inputwith a bandwidth of 500Hz. Assume that the analog samples will be encoded into 4-bit PCM words and the TDM PCM output is 6kbps

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
