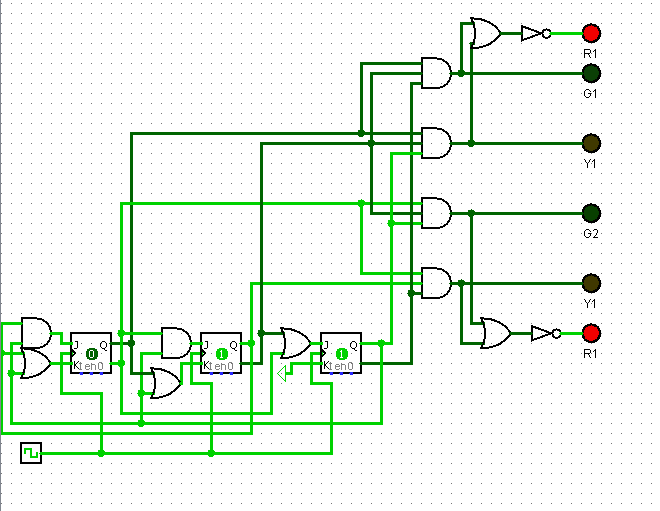

Question: How do I modify this circuit that I attached, I need it to have 2 turn light one called t 1 and one called t

How do I modify this circuit that I attached, I need it to have 2 turn light one called t1 and one called t2. I need the first stage to be r1 and r2 on then after that I need it to be t1 and r2 on. After t1 is on it needs to go to g1 on and r2 on then goes to y1 on and r2 on then both reds are on, so r1 and r2 are on. Then I need it to turn on t2 and keep r1 on. Then cycle to turning g2 and r1 on then y2 and r1 on and keep repeating that same 8 stage cycle order. If you could draw me a circuit that works for this that would be the most helpful. Thank you so much!
