Question: How is this - 1 ? EXERCISE 4 . 5 - 1 Determine the value of the voltage measured by the voltmeter in Figure E

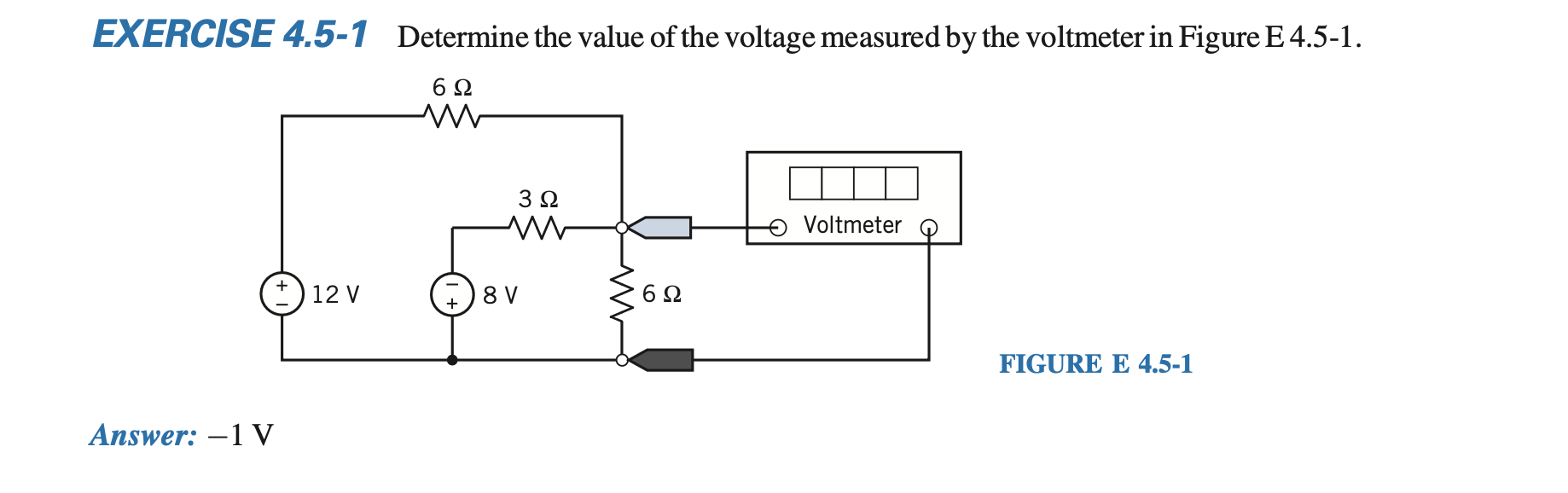

How is this -1? EXERCISE 4.5-1 Determine the value of the voltage measured by the voltmeter in Figure E 4.5-1.
FIGURE E 4.5-1
Answer: -1 V
How is this - 1 ? EXERCISE 4 . 5 - 1 Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
