Question: How many 2 4 jack studs are required at each end of a wood beam that carries a Southern uniform load of 8 0 0

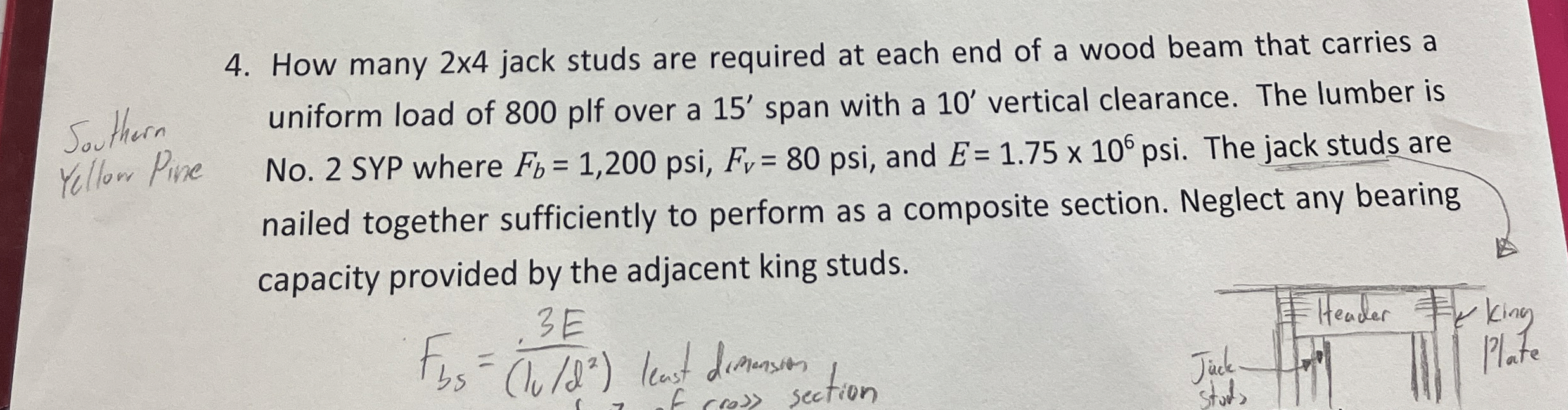

How many 24 jack studs are required at each end of a wood beam that carries a
Southern uniform load of 800 plf over a 15' span with a 10' vertical clearance. The lumber is Yellow Pine No.2 SYP where Fb=1,200,FV=80, and E=1.75106. The jack studs are nailed together sufficiently to perform as a composite section. Neglect any bearing capacity provided by the adjacent king studs.
Fbs=3E(1vd2) lecost dimenson
How many 2 4 jack studs are required at each end
