Question: How to solve Problem 2 ( 1 5 points ) Compute the horizontal displacement of joint C for the frame shown above. The moment of

How to solve
Problem 2(15 points)

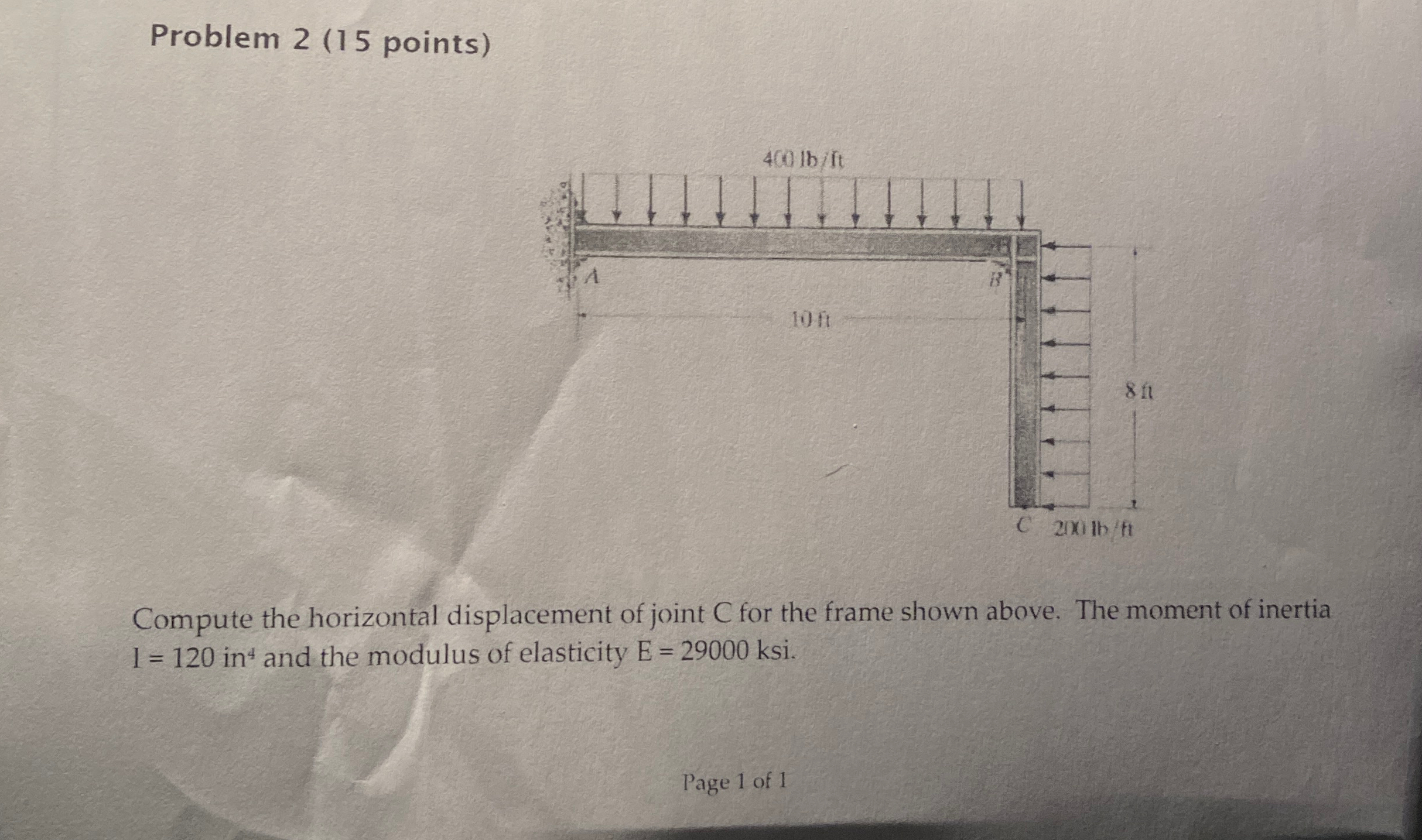

Compute the horizontal displacement of joint C for the frame shown above. The moment of inertia I=120in4 and the modulus of elasticity E=29000ksi.
Page 1 of 1
How to solve Problem 2 ( 1 5 points ) Compute the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
