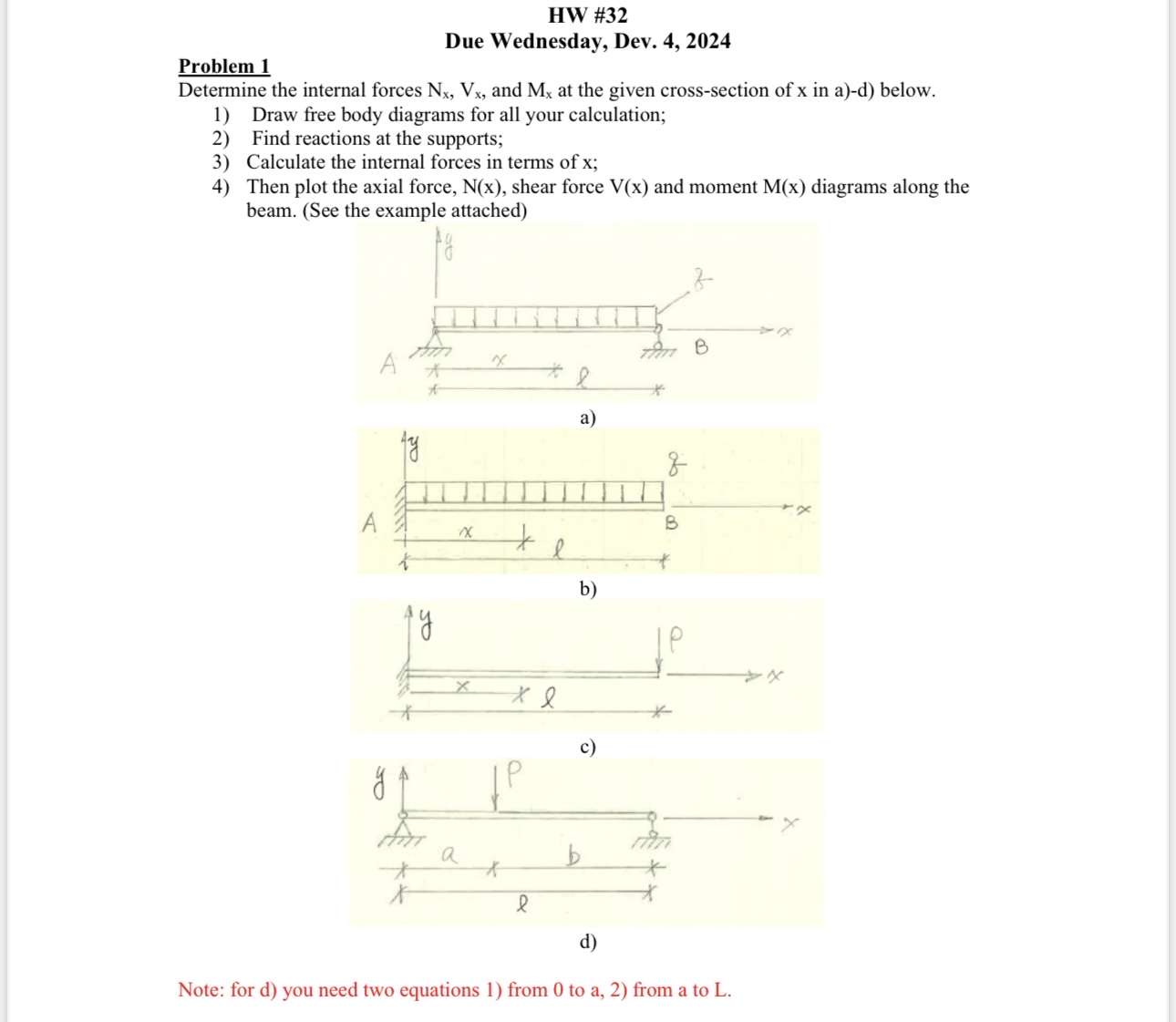

HW #$32$

Due Wednesday, Dev. $4,2024$

Problem $1$

Determine the internal forces $N_x,V_x,$ and $M_x$ at the given cross$-$section of x in a$)-$d$)$ below.

Draw free body diagrams for all your calculation;

Find reactions at the supports;

Calculate the internal forces in terms of $x$;

Then plot the axial force, $N(x),$ shear force $V(x)$ and moment $M(x)$ diagrams along the beam. $($See the example attached$)$

a$)$

Note: for d$)$ you need two equations $1)$ from $0$ to $a,2)$ from a to L $.$
