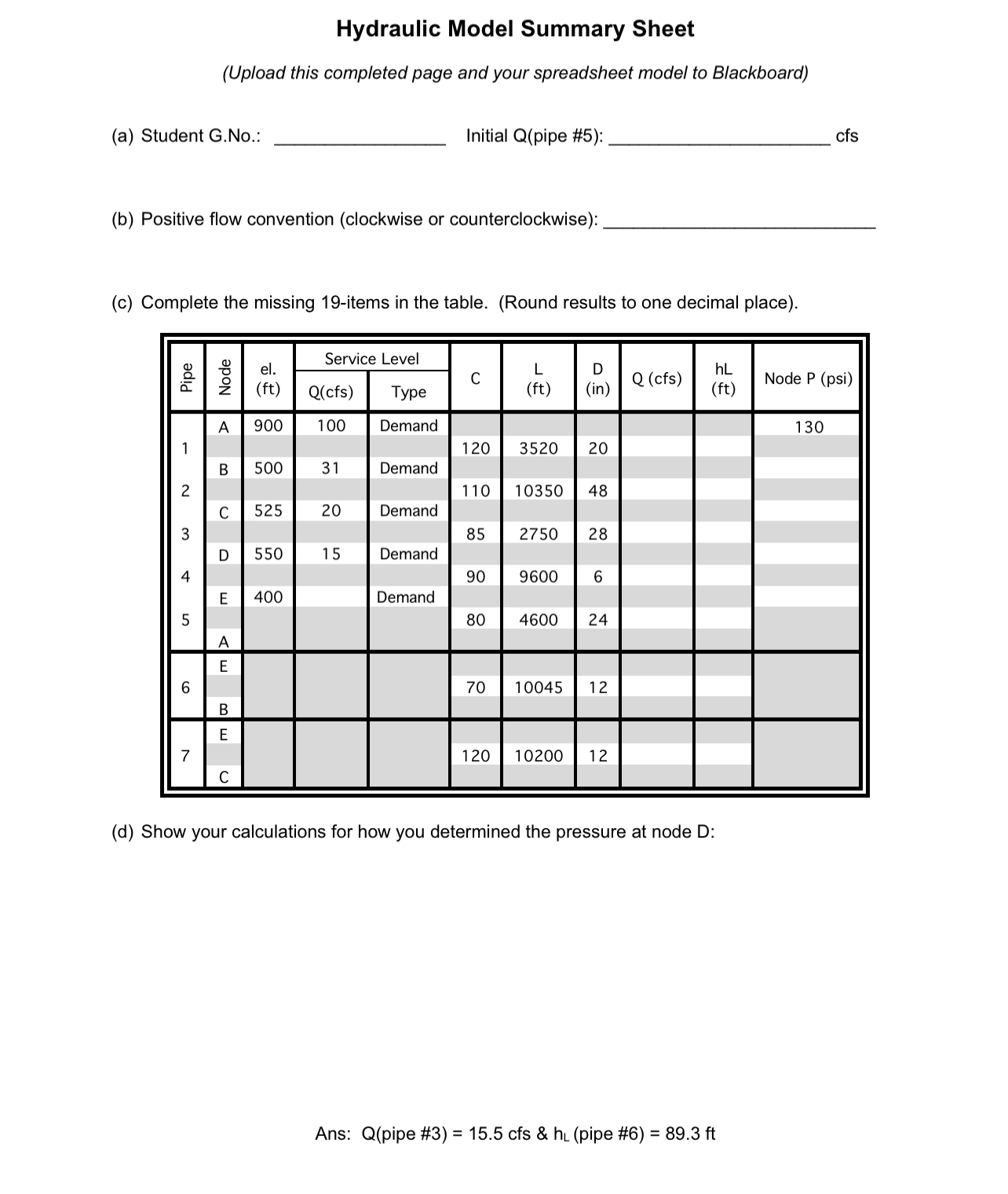

Hydraulic Model Summary Sheet

$($Upload this completed page and your spreadsheet model to Blackboard$)$

$($a$)$ Student

G$.$No$.$:

Initial Q$($pipe #$5)$:

ofs

$($b$)$ Positive flow convention $($clockwise or counterclockwise$)$:

$($c$)$ Complete the missing $19-$items in the table. $($Round results to one decimal place$).$

$\backslash$table$[[\frac{2}{2},,\backslash$table$[[$el$.],[($ft$)]],$Service Level,C$,\backslash$table$[[$L$],[($ft$)]],D$

$(in),$Q $($cfs$),\backslash$table$[[$hL$],[($ft$)]],$Node P $($psi$)],[$Q$($cfs$),$Type$],[1,$A$,900,100,$Demand,,,,,,$130],[,,,,120,3520,20,,,],[$B$,500,31,$Demand,,,,,,$],[2,,,,,110,10350,48,,,],[$C$,525,20,$Demand,,,,,,$],[3,,,,,85,2750,28,,,],[$D$,550,15,$Demand,,,,,,$],[4,,,,,90,9600,6,,,],[$E$,400,,$Demand,,,,,,$],[5,,,,,80,4600,24,,,],[$A$,,,,,,,,,],[6,$E$,,,,,,,,,],[,,,,70,10045,12,,,],[$B$,,,,,,,,,],[7,$E$,,,,,,,,,],[,,,,120,10200,12,,,],[$C$,,,,,,,,,]]$

$($d$)$ Show your calculations for how you determined the pressure at node D:

Ans: pipe #$3)$ pipe #$6$

Please note that Intial Q pipe #$5=20$cfs
