Question: I am having issues writing my psudeo code... need help planning out how to code this project. Please help. The goal is to create an

 I am having issues writing my psudeo code... need help planningout how to code this project. Please help. The goal is tocreate an EMG evaluating VI. The program contains the following controls on

I am having issues writing my psudeo code... need help planning out how to code this project. Please help.

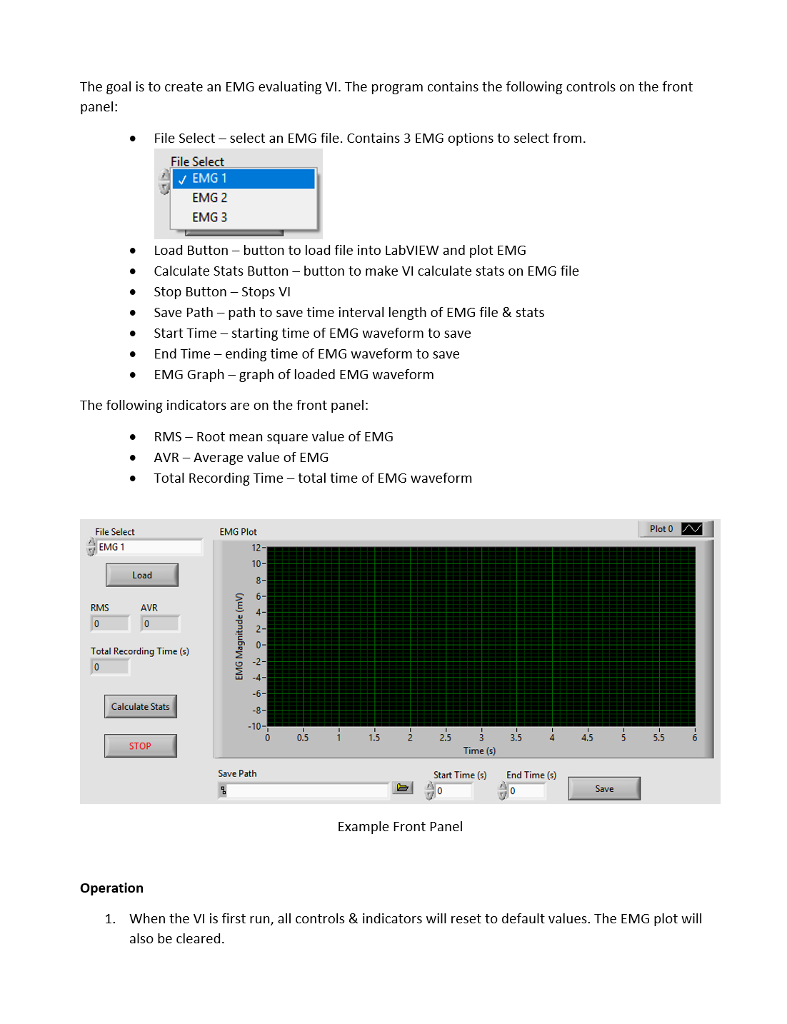

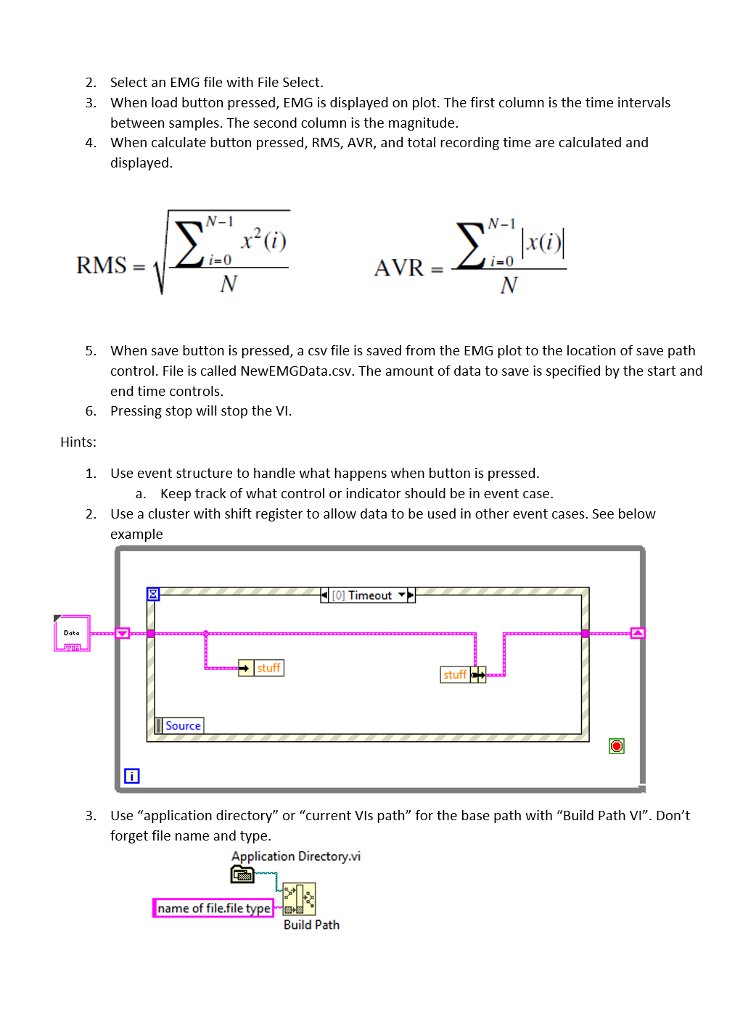

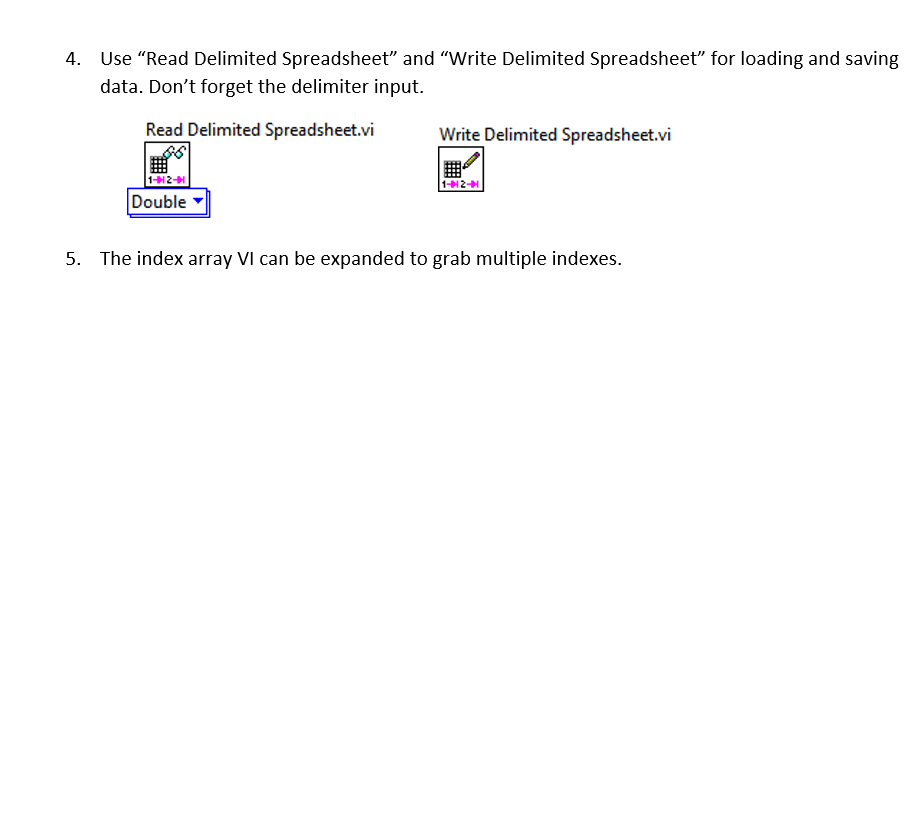

The goal is to create an EMG evaluating VI. The program contains the following controls on the front File Select - select an EMG file. Contains 3 EMG options to select from File Select EMG 1 EMG 2 EMG 3 Load Button -button to load file into LabVIEW and plot EMG Calculate Stats Button- button to make VI calculate stats on EMG file Stop Button - Stops VI Save Path -path to save time interval length of EMG file & stats . Start Time - starting time of EMG waveform to save End Time ending time of EMG waveform to save EMG Graph -graph of loaded EMG waveform The following indicators are on the front panel RMS-Root mean square value of EMG AVR-Average value of EMG Total Recording Time - total time of EMG waveform ? Plot 0 File Select EMG 1 EMG Plot 12 10 Load RMS AVR Total Recording Time (s) -2 Calculate Stats 10 0.5 1.5 2.5 3.5 4.5 5.5 STOP Time (s) Save Path Start Time (s) End Time (s) Save Example Front Panel Operation When the VI is first run, all controls & indicators will reset to default values. The EMG plot will also be cleared 1. The goal is to create an EMG evaluating VI. The program contains the following controls on the front File Select - select an EMG file. Contains 3 EMG options to select from File Select EMG 1 EMG 2 EMG 3 Load Button -button to load file into LabVIEW and plot EMG Calculate Stats Button- button to make VI calculate stats on EMG file Stop Button - Stops VI Save Path -path to save time interval length of EMG file & stats . Start Time - starting time of EMG waveform to save End Time ending time of EMG waveform to save EMG Graph -graph of loaded EMG waveform The following indicators are on the front panel RMS-Root mean square value of EMG AVR-Average value of EMG Total Recording Time - total time of EMG waveform ? Plot 0 File Select EMG 1 EMG Plot 12 10 Load RMS AVR Total Recording Time (s) -2 Calculate Stats 10 0.5 1.5 2.5 3.5 4.5 5.5 STOP Time (s) Save Path Start Time (s) End Time (s) Save Example Front Panel Operation When the VI is first run, all controls & indicators will reset to default values. The EMG plot will also be cleared 1
