Question: I am having trouble with PROBLEM 3 . Only use the block diagram from problem 2 to answer problem 3 . Please show details and

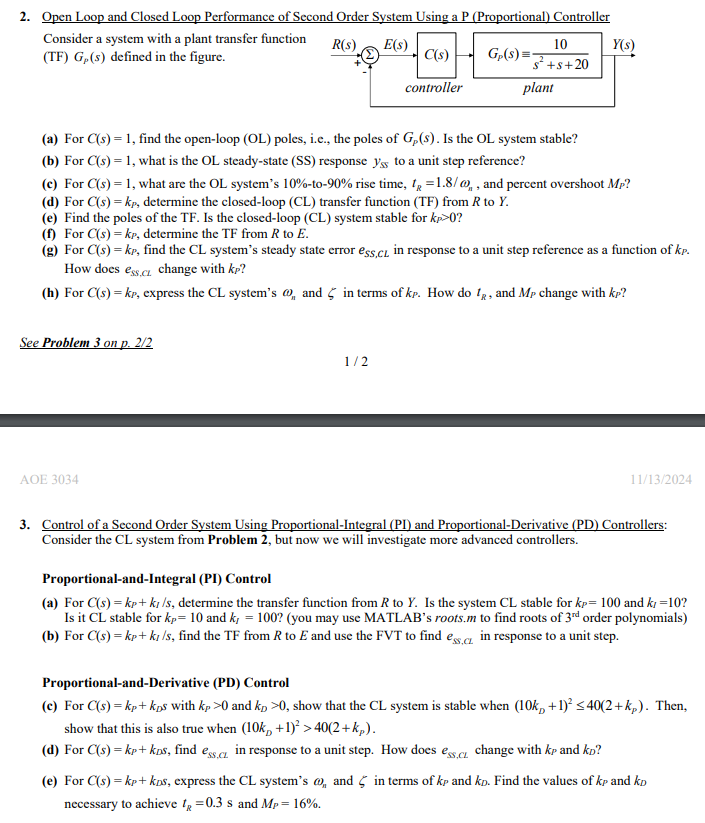

I am having trouble with PROBLEM 3. Only use the block diagram from problem 2 to answer problem 3. Please show details and/or MatLab code to help solve this problem.
I am having trouble with PROBLEM 3 . Only use the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
