Question: I. Draw an activity on node (AON) network diagram for the project. [9] II. Determine early start times, early finish times, late start times and

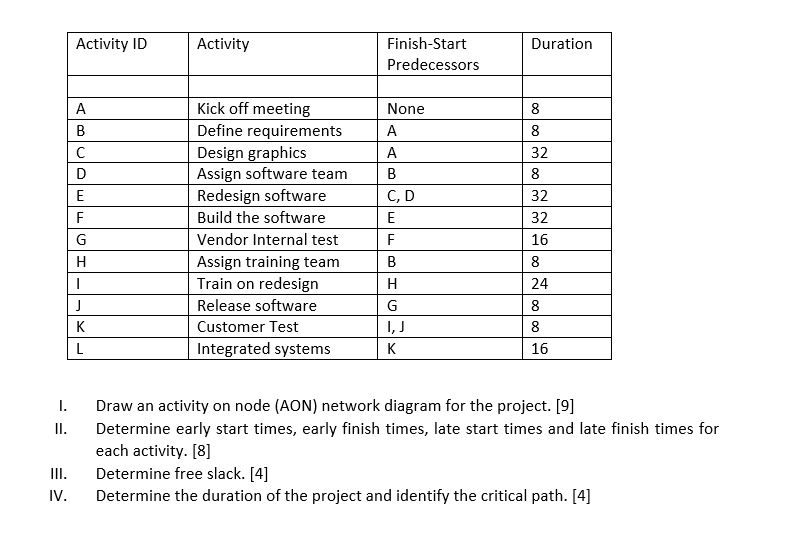

I. Draw an activity on node (AON) network diagram for the project. [9] II. Determine early start times, early finish times, late start times and late finish times for each activity. [8] III. Determine free slack. [4] IV. Determine the duration of the project and identify the critical path. [4]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
