Question: (i) For the project details shown below, draw the AON network diagram and determine the following for all activities: (a) early start, (b) early finish,

(i) For the project details shown below, draw the AON network

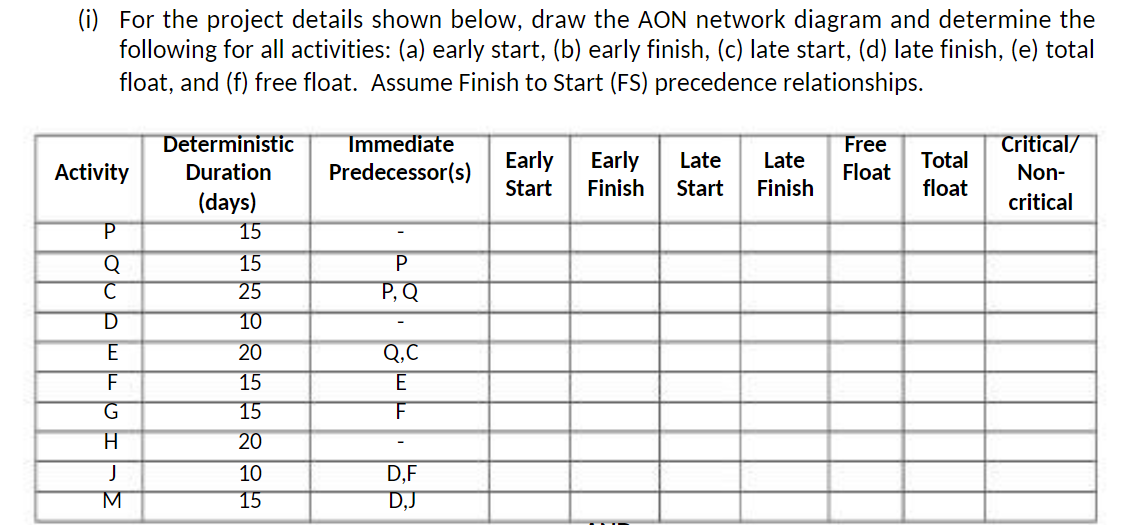

(i) For the project details shown below, draw the AON network diagram and determine the following for all activities: (a) early start, (b) early finish, (c) late start, (d) late finish, (e) total float, and (f) free float. Assume Finish to Start (FS) precedence relationships. Deterministic Immediate Free Critical/ Activity Duration Predecessor(s) Early Early Late Late Float Total Non- Start Start float (days) Finish Finish critical P 15 Q 15 P 25 P, Q 10 20 Q,C 15 E 15 F H 20 10 D,F 3 15 DJ

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
