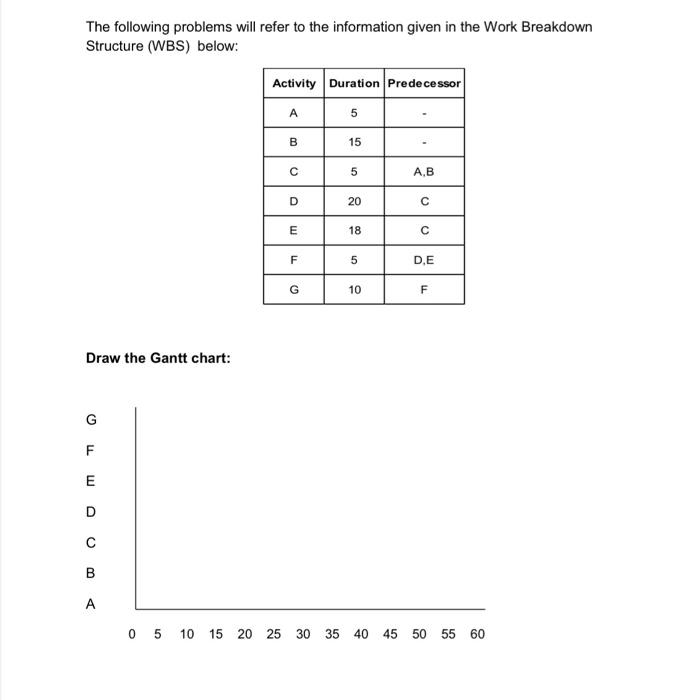

Question: please do both. Thank you The following problems will refer to the information given in the Work Breakdown Structure (WBS) below: Draw the Gantt chart:

please do both. Thank you

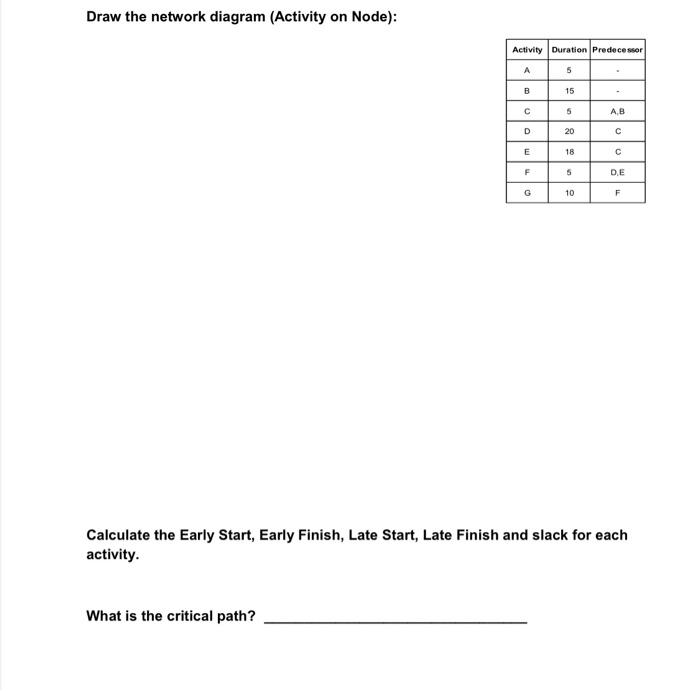

The following problems will refer to the information given in the Work Breakdown Structure (WBS) below: Draw the Gantt chart: Draw the network diagram (Activity on Node): Calculate the Early Start, Early Finish, Late Start, Late Finish and slack for each activity

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
