i have made a pratt truss bridge which has dimensions like:

max height of bridge:12cm then its like 9cm,6cm

distance between two frames: 11cm

distances between the pillars:7cm,7cm,4cm

it is a wooden bridge made out of kabab sticks

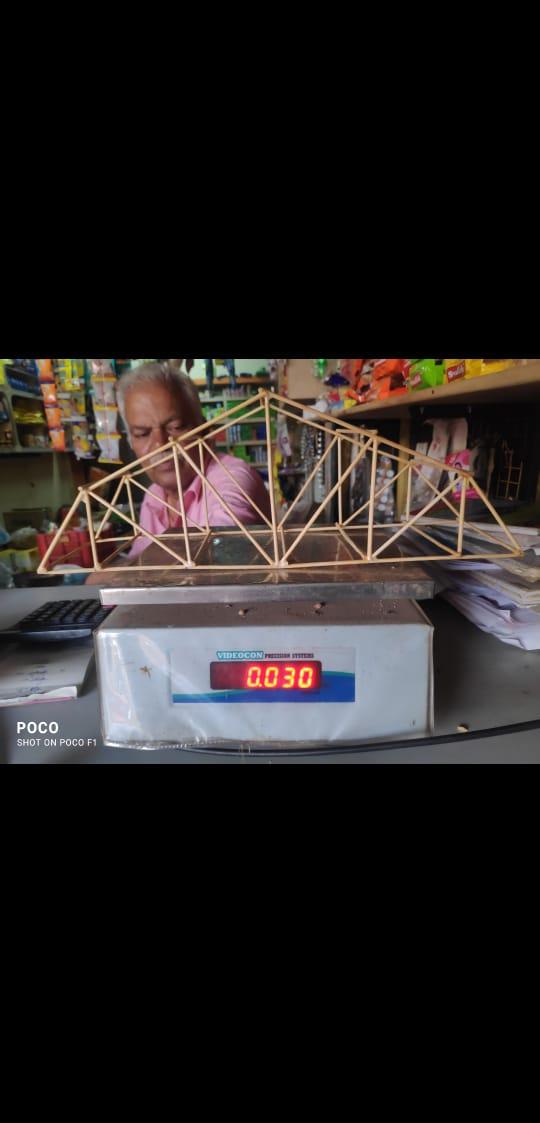

WEIGHT OF BRIDGE 30 GRAMS question:so now we have this much of data with us.We need to do analysis FEA of the bridge use any software like solidworks,ansys etc and share simulation file and find forces at each point .Or you can do with hand calculations also.So,find deflections,factor of safety etc.and show all steps detailed.Maybe at the centre down point of the bridge max force applied is 6KN as it carried 6KG.maybe using pratt truss equations we can find forces and deflections and what point it should break etc.I HAVE ALREADY CONDUCTED ITS BREAKING TEST IT CARRIED 6 KG OF TOTAL WEIGHT AND IT BROKE MEANS IT CARRIED 200 TIMES ITS OWN WEIGHT SO THIS ALL DATA IS GIVEN TO US.
