Question: I JUST NEED 2 - 4 1 AND 2 - 4 3 THANK YOU! 2 . 4 0 The link lengths of a planar four

I JUST NEED 2-41 AND 2-43 THANK YOU!

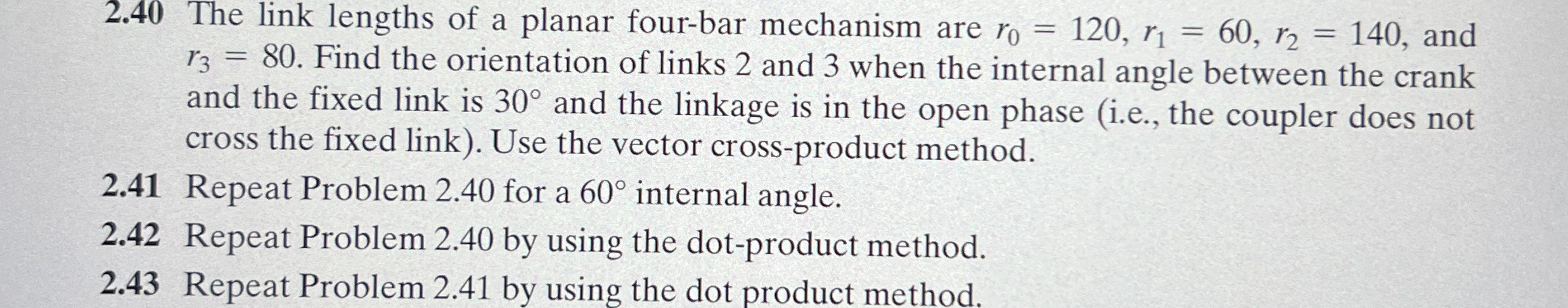

2.40 The link lengths of a planar four-bar mechanism are r0=120,r1=60,r2=140, and
r3=80. Find the orientation of links 2 and 3 when the internal angle between the crank
and the fixed link is 30 and the linkage is in the open phase (i.e., the coupler does not
cross the fixed link). Use the vector cross-product method.
2.41 Repeat Problem 2.40 for a 60 internal angle.
2.43 Repeat Problem 2.41 by using the dot product method.
