Question: Example Write the differential equations for the mechanical system below, and then find the input - output equations. The input is force ' F '

Example

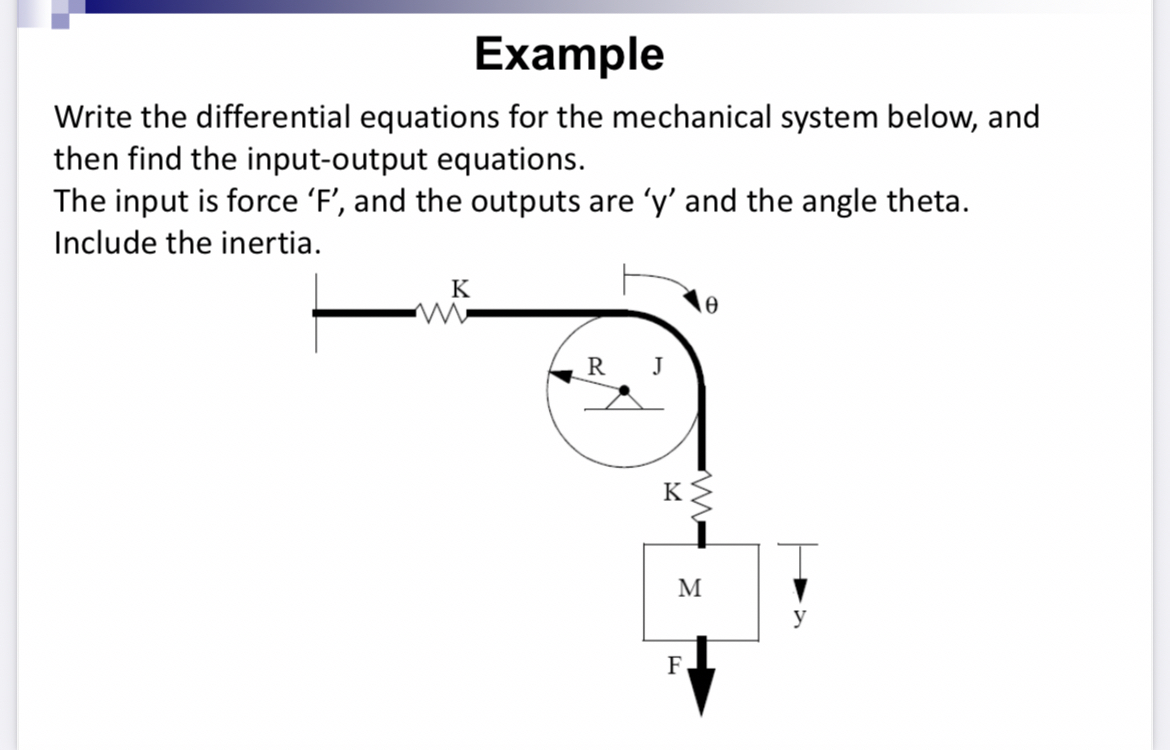

Write the differential equations for the mechanical system below, and then find the input-output equations.
The input is force 'F', and the outputs are 'y' and the angle theta. Include the inertia.
Example Write the differential equations for the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
