Question: I need a MATLAB program for the following problem: Figure 1(a) shows a uniform beam subject to a linearly increasing distributed load (within the elastic

I need a MATLAB program for the following problem:

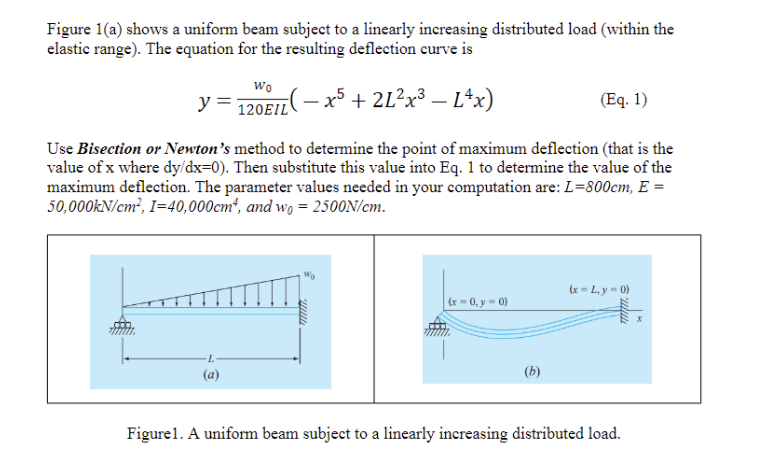

Figure 1(a) shows a uniform beam subject to a linearly increasing distributed load (within the elastic range). The equation for the resulting deflection curve is y=120EILw0(x5+2L2x3L4x) Use Bisection or Newton's method to determine the point of maximum deflection (that is the value of x where dy/dx=0). Then substitute this value into Eq. 1 to determine the value of the maximum deflection. The parameter values needed in your computation are: L=800cm,E= 50,000kN/cm2,I=40,000cm4, and w0=2500N/cm. Figure1. A uniform beam subject to a linearly increasing distributed load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Problem - 1: The deflection of a uniform beam y(x) subjected to linearly increasing distributed load is given by eqn. 1. wo is the maximum value of the uniform varying load as shown in Figure 1, E is...

Solve by matlab and submitte m-file The figure given below shows a uniform beam subject to a linearly increasing distributed load. The equation for the resulting elastic curve is as follows: EI (1x =...

Figure below (a) shows a uniform beam subject to a linearly increasing distributed load. As depicted in Fig. (b), deflection y (m) can be computed with y-120E1 Where E the modulus of elasticity and I...

Figure below (a) shows a uniform beam subject to a linearly increasing distributed load. As depicted in Fig. (b), deflection y (m) can be computed with y-120E11. Where E-the modulus of elasticity and...

L Mateman Google X Google x C Home canva com design DAGQ f1GS1Y D5VGIwtH97TXku1t10S70w edit X Copy of 04 ITERA Matematika Rekayasa dan Metode Num Animate 5 05 Position LATIHAN 8 18 Figure P8 18a...

8.18 Figure P8.18 a shows a uniform beam subject to a linearly in- creasing distributed load. The equation for the resulting elastic curve is (see Fig. P8.18b) WO -(-x+2L?x? Lx) (P8.18) 120 EIL Use...

We are to write a script using the Bisection Method using MatLab where there may be functions within the script. 8.18 Figure P8.18a shows a uniform beam subject to a linearly increasing distributed...

(25 Points) In the figure below, figure (a) shows a uniform beam subject to a linearly increasing distributed load which starts a 0 at the left end and increases to Wo on the right end. As depicted...

Problem 4: The figure shows a uniform beam subject to a linearly increasing distributed load. The equation for the resulting elastic curve is y = (-x5 + 2L? x3 L*x) 120EIL wo where E = the modulus of...

(matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) (matlab only) Use...
