Question: I need full answers with all steps for this Problem 1 : Select a single - angle equal legs tension member to resist a design

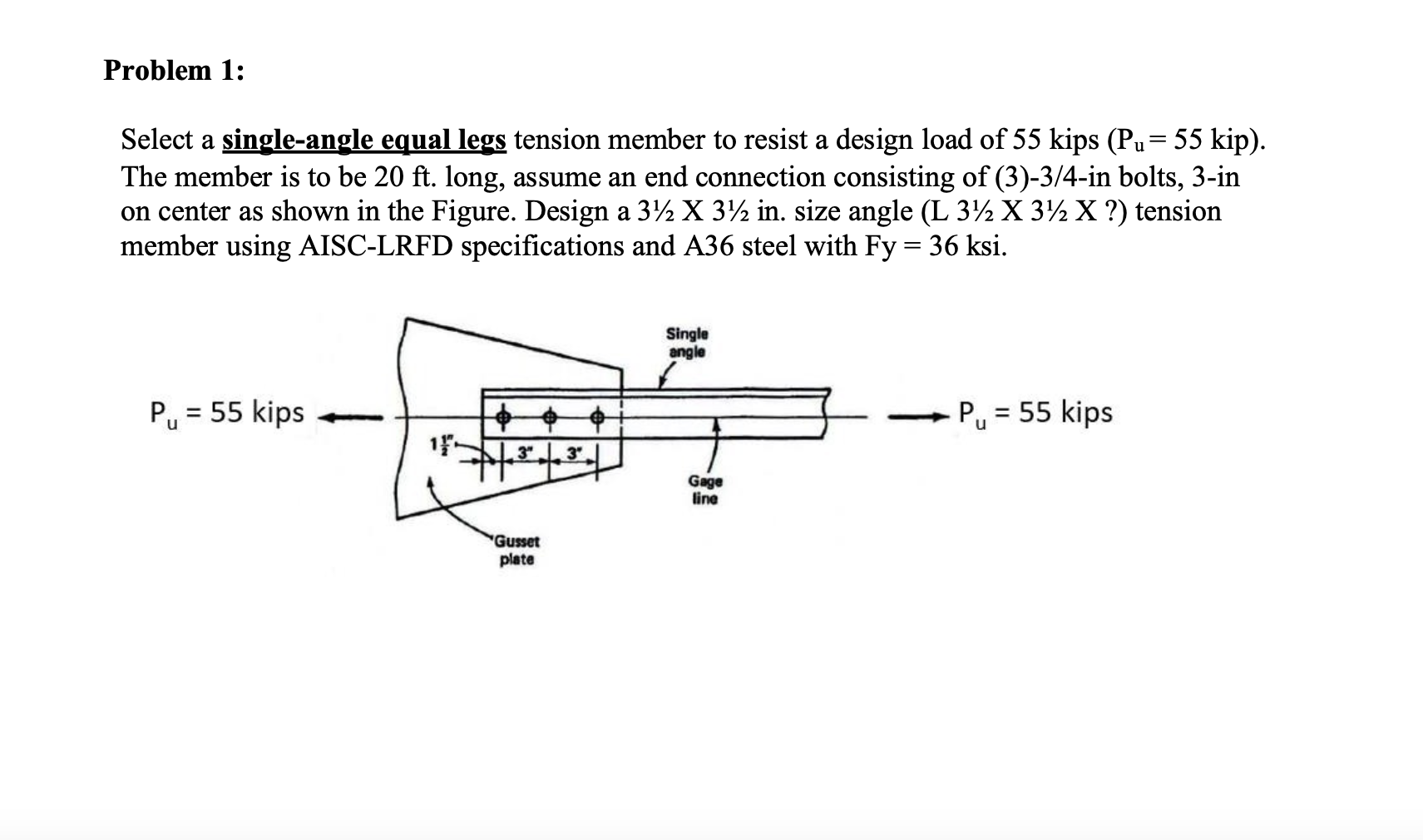

I need full answers with all steps for this Problem 1:
Select a single-angle equal legs tension member to resist a design load of ). The member is to be 20 ft . long, assume an end connection consisting of (3)-3/4-in bolts, 3-in on center as shown in the Figure. Design a 312 X 312 in. size angle (L 312 X 312 X ?) tension member using AISC-LRFD specifications and A 36 steel with Fy=36ksi.
F
I need full answers with all steps for this
